Optimize labor costs, improve inspection efficiency, reduce costs and increase efficiency

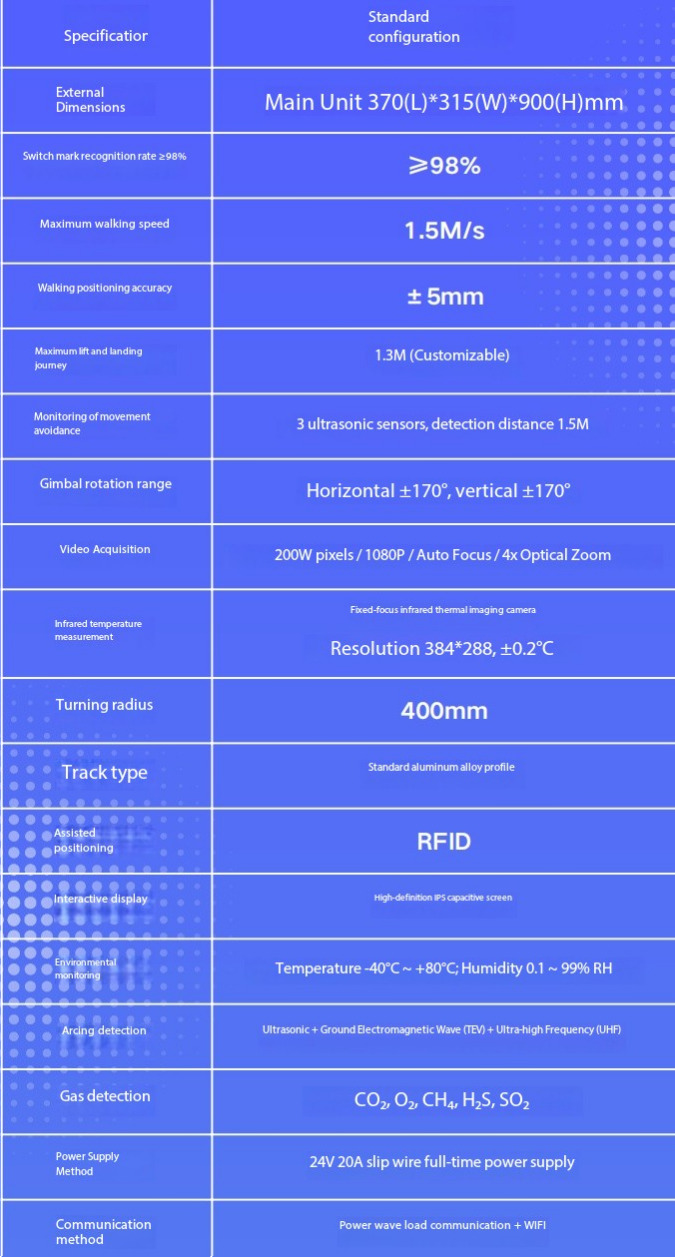

Specifications:
Overall Dimensions: Main Unit 370(L)*315(W)*900(H)mm
Switch Mark Recognition Rate: ≥98%
Maximum Walking Speed: 1.5M/s
Walking Positioning Accuracy: ±5mm
Maximum Lifting Stroke: 1.3M (Customizable)
Motion Obstacle Avoidance Monitoring: 3*Ultrasonic Sensors, Detection Distance 1.5M
PTZ Rotation Range: Horizontal ±170°, Vertical ±170°
Video Acquisition: 2MP/1080P/Auto Focus/4x Optical Zoom
Infrared Temperature Measurement: Fixed-Focus Infrared Thermal Imager with Resolution 384*288, +0.2℃
Turning Radius: 400mm
Track Type: Standard Aluminum Profile
Auxiliary Positioning: RFID
Interactive Display: High-Definition IPS Capacitive Screen
Environmental Monitoring: Temperature -40℃~+80℃; Humidity 0.1~99%RH
Partial Discharge Detection: Ultrasonic + Transient Earth Voltage (TEV) + Ultra High Frequency (UHF)
Gas Detection: CO, O₂, CH₄, H₂S, SF₆
Power Supply: 24V 20A Trolley Line Continuous Power Supply
Communication Method: Power Line Carrier Communication + WIFI
Main Functions:
Motion and Positioning:
·Autonomous Movement: Precise movement, motion obstacle avoidance to ensure safety, and flexible adjustment of observation angle via PTZ.
Track Adaptation: Capable of traveling on straight and curved tracks.
Power Supply and Communication:
Power Supply Guarantee: 24V 20A trolley line main power supply to ensure continuous operation.
Communication and Control: Supports Power
Carrier Communication + WIFI, Wireless Remote
Control to实现 data transmission and remote control.
Inspection and Detection:
Meter Recognition and Inspection: Switch meter
recognition rate 298%, efficient recognition
of meters; video acquisition, infrared
temperature measurement, partial discharge detection, gas detection, environmental monitoring to complete multi-dimensional inspection of power equipment.
Industry Pain Points:
Distribution Room
Data Center
GIS Room
Relay Protection Room
High-risk environment prone to casualties Low efficiency of manual inspection Limited frequency, difficult to achieve full coverage Error-prone data recording, difficult to standardize
Practical Applications:

Power Industry (Substation/Distribution Room):
·Equipment Status Monitoring: Detect abnormal temperatures of transformers, circuit breakers and other equipment through infrared thermal imager·Gas Sensors: Multi-parameter simultaneous monitoring of temperature, humidity and five key gases to achieve comprehensive perception of environmental status
Automatic Meter Recognition: 298% switch meter recognition rate to实现 automatic meter data recording instead of manual recording

GIS Room:
Switch Status Inspection: Position indication confirmation: Identify the opening and closing indication positions of circuit breakers and disconnectors.·SF₆ Gas Leakage Monitoring: Real-time monitoring of sulfur hexafluoride gas concentration for GIS equipment to ensure equipment safety and personnel health
·Insulation Performance Evaluation: Combined detection of partial discharge by ultrasonic + transient earth voltage (TEV) + ultra high frequency (UHF) to prevent insulation breakdown

Data Center (Equipment Inspection in Computer Room):
Server Temperature Monitoring: Infrared thermal imager scans the temperature distribution inside the cabinet to identify hot spots
·UPS System Inspection: Battery pack voltage and current parameter collection to predict battery life

Intelligent Manufacturing (Production Line Equipment Monitoring):
·Equipment Predictive Maintenance: Temperature and vibration monitoring of rotating equipment such as motors and gearboxes Automatic Meter Reading: Automatic identification and data upload of industrial meters such as pressure gauges and flow meters on the production line
·Environmental Compliance Monitoring: Workshop air quality monitoring (CO, O₂ concentration) to ensure compliance with occupational health standards
