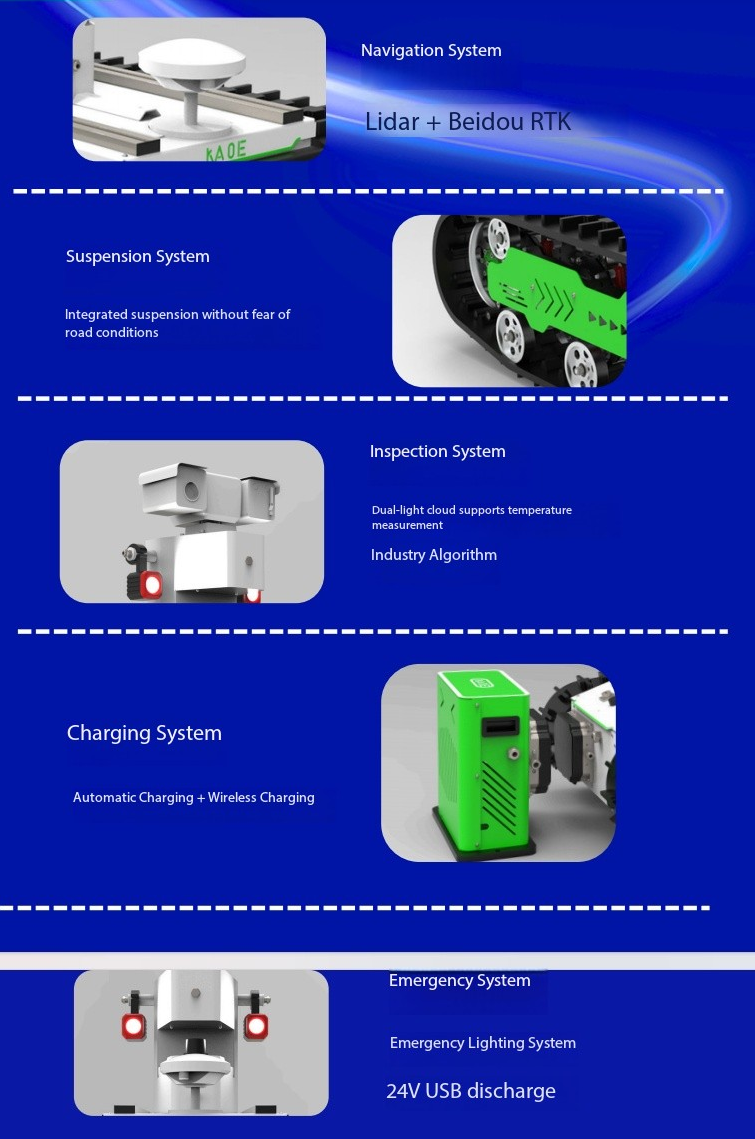

Navigation System:
LiDAR + Beidou RTK
Suspension System:
Integrated suspension, no fear of road conditions
Inspection System:
Dual-light pan-tilt supports temperature measurement industry algorithms
Charging System:
Automatic charging + wireless charging
Emergency System:
Emergency lighting system
24V USB discharge
Practical Applications:
Metallurgical Industry:
Inspection robots play a role in improving safety, efficiency, and ensuring production stability. Suitable for harsh environments where traditional manual inspection is difficult to operate for a long time, such as high temperature, high dust, and high radiation.
Chemical Industry:
Aiming at the characteristics of high risk, high toxicity and high precision in chemical production, they can realize operations such as replacing manual work in dangerous scenes and real-time monitoring of the whole process.
Emergency Search and Rescue:
Through intelligent environmental perception, precise life detection, and reliable communication support.
Metallurgical Industry:
Regional intrusion, unfastened safety belt detection, infrared temperature measurement, uncovered safety helmet detection, smoke detection, harmful gas detection
Chemical Industry:
Harmful gas detection, infrared temperature measurement, running detection, un labor protection equipment detection, pipeline leakage detection



Technical Parameters:
Approximately 1100*760*860mm, weight ≤120KG
Rated power: ≤2*750W
Movement mode: forward/backward/in-place rotation/turning while moving
Running speed: 0~1.6m/s
Maximum climbing: ≤30°
Operation mode: 7x24 hours all-weather operation
Carried modules: dual-light pan-tilt + navigation laser + wireless charging module
Working humidity: 5%Rh~95%Rh without condensation
Control method: automatic inspection + handheld remote control + remote background control
Remote control distance: 300M-500M in open area
Sensors: CO+CH4+H2+02 gas monitoring, optional installation as needed
Remote debugging: support remote debugging and machine power-on self-test
Battery type: Lithium iron phosphate
Battery capacity: 48V 42AH
Battery safety: BMS system protection
Battery life: about 15KM
Navigation function: laser SLAM, single-line/multi-line
Obstacle avoidance and bypassing: supported
Positioning accuracy: ±20mm
Pan-tilt rotation: horizontal 360° + vertical 180° rotation
Pan-tilt movement: visible light + infrared
Visible light resolution: 2688*1520
Infrared resolution: 384*288/640*512
