Application Fields:

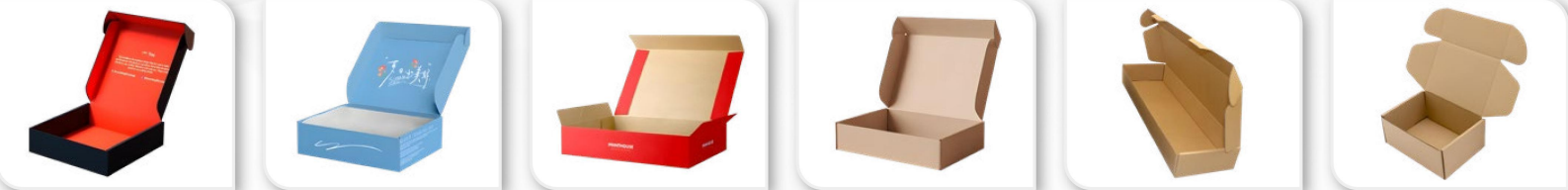

It is commonly used for automatic box folding of aircraft boxes in various fruit boxes, smart locks, electrical components, textiles, craft gifts, electronic products, hardware products, toys, cosmetics, medical and pharmaceutical industries, etc.
Basic Functions:
This machine is equipped with an automatic box adsorption feeding device, which can place a stack of boxes on the box rack; synchronous box taking, pressing forming, and folding and buckling of both sides are completed synchronously at one time, and the finished products are output after box folding: it can be used as a single machine or connected to the subsequent box packing production line.
Technical Parameters:
Product Model: HL-ZA20 Intelligent Box Folding Machine (Double-Side Buckling)
Power Supply: 220V, 60Hz, 2kW
Box Folding Speed: 900-1200 pcs/h
Air Source:
600NL/min
0.6-0.8Mpa
Applicable Box Size: Length 150-300, Width 100-200, Height 30-70mm, other sizes can be customized
Machine Weight: 400kg
Machine Dimensions (LengthWidthHeight): 1780*780*1400mm
