Applicable Fields:
It is commonly used for automatic folding of top-and-bottom cover cartons such as various fruit boxes, electronic products, hardware products, toys, cosmetics, medical and pharmaceutical products, shoe boxes, etc. (The structure is more Firm when using the glue spraying method)
Basic Functions:

This machine is equipped with an automatic box adsorption feeding device, which can place a stack of boxes on the box rack;

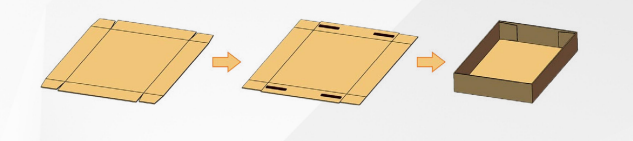

Synchronous box taking, hot melt glue spraying, and pressing forming are completed synchronously at one time, and the finished product is output after folding;
The hot melt glue box folding machine is composed of three parts: carton forming mechanism, separate feeding mechanism and hot melt glue spraying mechanism;
The mechanical cam structure is adopted to greatly improve the box folding efficiency;
The separate feeding mechanism allows quick and convenient addition of cardboard without stopping the machine;
It can be used as a single machine or connected to the subsequent box packing production line.

Technical Parameters:
Product Model: HL-ZP30 Top-and-Bottom Cover Glue Spraying Box Folding Machine
Power Supply: 220V, 60Hz, 2kW
Box Folding Speed: 1800-2400 pcs/h
Air Source:
600NL/min
0.6-0.8Mpa
Applicable Box Size: Length 200-300, Width 150-200, Height 50-90mm, other sizes can be customized
Machine Weight: 800kg
Machine Size (LengthWidthHeight): 3650*1250*1960mm
