Application Fields:

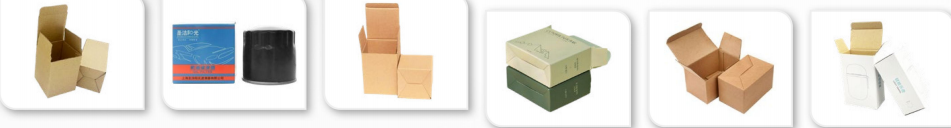

Widely used in the folding box forming of industries such as electronic products, thermos cups, hair dryers, toys, food e-commerce products, cosmetics, medical drugs, auto parts, filters, etc.
Basic Functions:
This machine is designed with simple operation, economy and durability, safety, and low failure rate: it can automatically double-suction open the box, buckle the box bottom, and form output;
It has a parameter memory function and can store recipes. If you need to change the carton size, it can be done in 5 minutes; this machine can work alone or be used with an automated packaging line.
Technical Parameters:

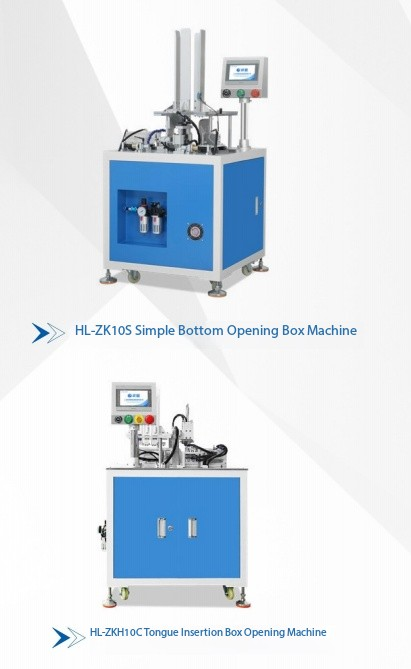

Product Model: HL-ZK10 Box Opening Machine
Power Supply: 220V, 50Hz, 0.5kW
Box Buckling Speed: 720-800 pcs/h
Air Source:
600NL/min
0.6-0.8Mpa
Applicable Box Size: Length 100-300, Width 70-120, Height 70-120mm, can be customized according to carton size
Machine Weight: 350kg
Machine Dimensions (LengthWidthHeight): 1620*820*1650mm
