Functionalities and Features:

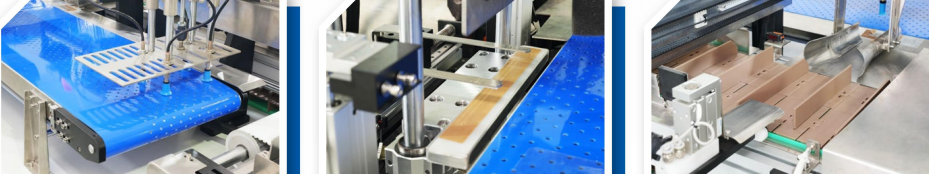

The equipment mechanism consists of an automatic bag picking and placing mechanism, an automatic bag opening mechanism, an automatic product conveying mechanism, an automatic bagging mechanism, an automatic bag mouth organizing mechanism, an automatic sealing mechanism, a main bracket mechanism, and a control mechanism; The design of each component of the equipment is carried out according to the efficiency requirement of 800-1000pcs/h; The equipment structure is scientifically designed, simple, with high reliability, convenient and quick adjustment and maintenance, and easy to learn.
Optional Functions:
Equipment heat sealing, hot cutting sealing
Equipment adhesive tearing sealing
Equipment vacuum sealing
Equipment adhesive sticking sealing
Connectable to production line
Equipped with bag UV printing
Optional labeling machine, online printer
Technical Parameters:
Input Voltage V: 220V
Equipment Weight kg: 700kg
Equipment Dimensions mm: L2900*W1300*H1470mm

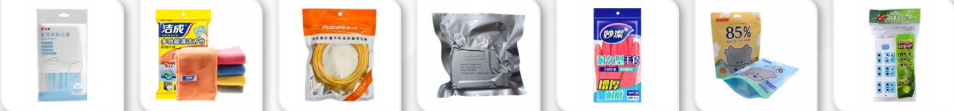

Applicable Product Dimensions mm: L100-250mm W50-150mm H10-50mm Other dimensions are customizable
Power kW: 3.0kW
Working Air Pressure Mpa: 0.5-0.7Mpa
Air Consumption L/min: 300-500L/min
Applicable Bag Dimensions mm: L150-300mm W70-220mm Other dimensions are customizable
