Application Fields:

Widely used for bag packaging of products in daily life, learning, electronics, medical and other fields.
Application scenarios: various 3℃ boxes, power data cables, remote controls, mobile phone boxes, boxes with external hooks that need to be punched.

Functions and Features:

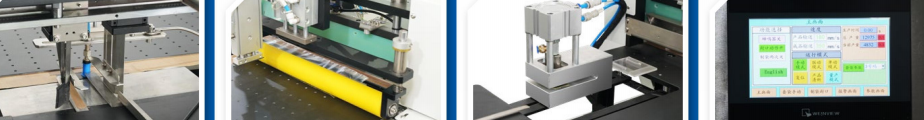

The equipment mechanism consists of automatic film feeding mechanism, automatic punching mechanism, automatic bag making mechanism, product conveying mechanism, automatic bag opening mechanism, automatic bagging mechanism, automatic sealing mechanism, product conveying and discharging mechanism, main bracket mechanism and control mechanism; mechanism, main bracket mechanism and control mechanism;
The design of each part of the equipment is carried out according to the efficiency requirement of 900-1200pcs/h;
The equipment structure is scientifically designed, simple, high reliability, convenient and fast adjustment and maintenance, and easy to learn.

Optional Functions:

Equipment heat sealing, hot cutting sealing
Can be connected to the production line
Can be equipped with bag UV printing
Optional labeling machine, online printer

Technical Parameters:
Input Voltage V: 220V
Equipment Weight kg: 600kg
Equipment Size mm: L2240*W1400*H1560mm
Applicable Product Size mm: L100-250mm W50-150mm H20-50mm (other sizes are customized)
Power kW: 3.0kW
Working Air Pressure MPa: 0.5-0.7Mpa
Air Consumption L/min: 300-500L/min
Applicable Bag Size mm: 150≤L+2H+50<350mm 100≤W+H+30≤200mm
(other sizes are customized)
