Application Fields:

Widely used for bag packaging of products in daily life, study, electronics, medical and other fields.

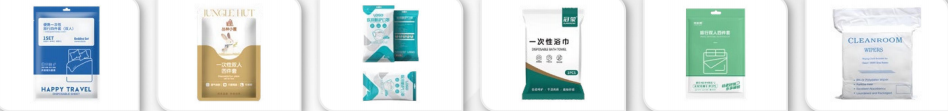

Application Scenarios: Suitable for soft products, textiles, disposable medical supplies, sanitary daily necessities, travel supplies, disposable towels, bath towels, surgical hole towels, disposable four-piece sets, medical care pads, etc.

Functions and Features:

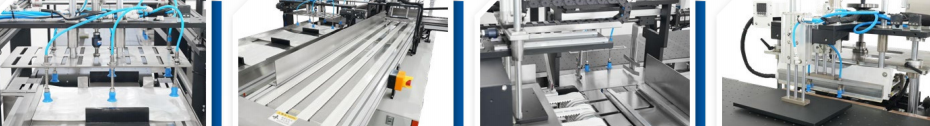

The equipment mechanism consists of an automatic bag storage and conveying mechanism, an automatic bag taking and placing mechanism, a product conveying mechanism, an automatic pushing mechanism, an automatic bag opening mechanism, an automatic clamping mechanism, an automatic bag mouth arranging mechanism, a product conveying and discharging mechanism, a main bracket mechanism and a control mechanism;
The design of each part of the equipment is carried out according to the efficiency requirement of 800-1000pcs/h;
The equipment structure is scientifically and simply designed, with high reliability, convenient and quick adjustment and maintenance, and easy to learn.

Optional Functions:
Equipment heat sealing, hot cutting sealing
Equipment glue tearing sealing
Equipment vacuum sealing
Equipment glue sticking sealing
Can be docked with production line
Can be equipped with bag UV printing
Optional labeling machine, online printer
Technical Parameters:
Input Voltage V: 220V
Equipment Weight kg: 900kg
Equipment Size mm: L3780W1760H1600
Applicable Product Size mm: L130-270mm W70-200mm H15-100mm Other sizes are customized
Power kW: 3.5kW
Working Air Pressure Mpa: 0.5-0.7Mpa
Air Consumption L/min: 400-600L/min
Applicable Bag Size mm: L200-450mm W120-320mm Other sizes are customized)
