Application Fields:

Widely used for bag packaging of products in life, study, electronics, medical and other fields.
Application scenarios: postcards, instructions, picture albums, red envelopes, document bags, notebooks, textbooks, folders, certificates of honor, envelope bags, thermal A4 paper and other products for bag packaging.

Functions and Features:

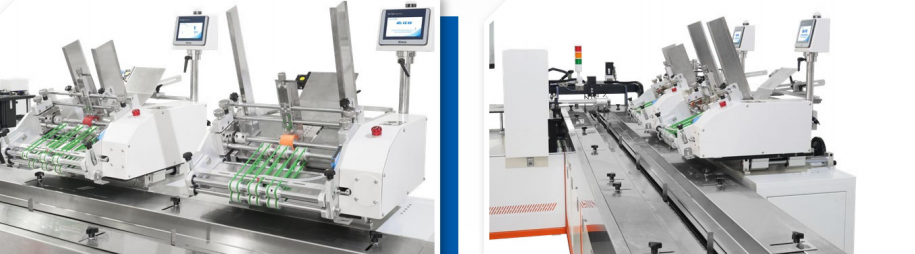

The equipment mechanism consists of automatic film roll feeding mechanism, card issuer automatic feeding mechanism, product automatic conveying mechanism, automatic pushing and bagging mechanism, automatic bag making mechanism, automatic sealing mechanism, card issuer mechanism, product conveying and discharging mechanism, main bracket mechanism and control mechanism;
The design of each part of the equipment is carried out according to the efficiency requirement of 20-50pcs/min;
The equipment structure is scientifically and simply designed, with high reliability, convenient and quick adjustment and maintenance, and easy to learn.

Technical Parameters:
Input Voltage V: AC220V
Power kW: 3.5kW
Equipment Weight kg: 1460kg
Working Air Pressure Mpa: 0.5-0.7Mpa
Equipment Size (LengthWidthHeight)
mm: 3950*2825*1505mm
Air Consumption L/min: 300-500L/min
Applicable Product Size mm: L145-300mm W100-210mm
H5-20mm
Applicable Bag Size mm: L200-370mm W120-230mm
