Application Fields:

Widely used for bagging packaging of products in daily life, study, electronics, medical and other fields.

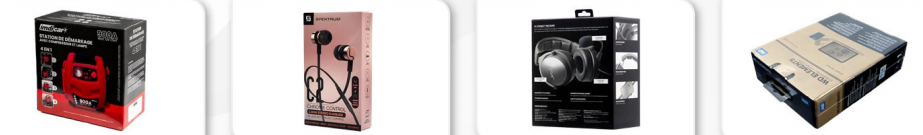

Application scenarios: gift boxes, electronic product packaging boxes, pharmaceutical packaging boxes, cosmetics packaging boxes, tea boxes, shoe boxes, towel boxes, underpants and silk stockings boxes and other products for bagging packaging.

Functions and Features:

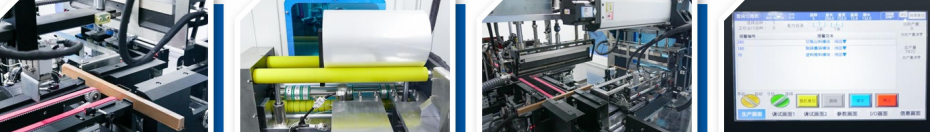

The equipment mechanism consists of automatic film roll feeding mechanism, automatic film pulling mechanism, automatic bag making mechanism, automatic bagging mechanism, automatic sealing mechanism, automatic four-corner cutting mechanism, waste material processing mechanism, product conveying mechanism, main support mechanism and control mechanism;
The design of each component of the equipment is carried out according to the efficiency requirement of 350-600pcs/h;
The equipment structure is scientifically and simply designed with high reliability, convenient and quick adjustment and maintenance, and easy to learn.

Technical Parameters:
Input Voltage V: AC220V
Power approx. kW: 10kW
Equipment Weight kg: 1500kg
Working Air Pressure Mpa: 0.5-0.7Mpa
Equipment Dimensions (LengthWidthHeight)
mm: 2600*1420*1810mm
Air Consumption L/min: 600-800L/min
Applicable Product Size mm: L100-300mm W50-150mm
H30-100mm
Applicable Bag Size mm: L+2H+80< 450mm
W+H+30 < 300mm
