Functions and Features:

The equipment mechanism consists of a bag warehouse mechanism, an automatic bag taking and opening mechanism, an automatic bag supporting and rotating mechanism, an automatic product conveying mechanism, an automatic pushing and bagging mechanism, an automatic bag arranging mechanism, an automatic bag mouth clamping and translating mechanism, an automatic sealing mechanism, a product conveying and discharging mechanism, a main support mechanism, and a control mechanism;
The design of each part of the equipment is carried out according to the efficiency requirement of 20-50pcs/min;
The equipment structure is scientifically and simply designed, with high automation, strong professionalism, high production efficiency and low failure rate;
Adopt servo control system, touch screen man-machine interface for clearer display and easier maintenance.

Applicable Fields:

Widely used for bagging packaging of products in life, study, electronics, cosmetics, medical, food and other fields.

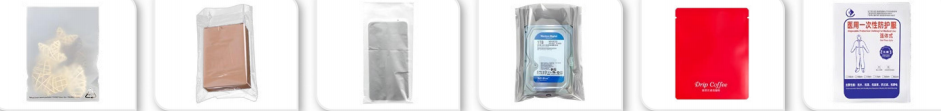

Application Scenarios: Bagging packaging of bath towels, towels, bottom-supported box products, bread, snack bags, tea bricks, square fishing bait, foundation boxes, sanitary napkins and other products.

Technical Parameters:
Input Voltage V: AC220V
Power kW: 8.0kW
Equipment Weight kg: 740kg
Working Air Pressure Mpa: 0.5-0.7Mpa
Equipment Dimensions (LengthWidthHeight) mm: 3075*2320*1465mm
Air Consumption L/min: 600L/min
Applicable Bag Size mm: L250-350mm W110-220mm H40-90mm
Applicable Bag Material: CPP, PT, PE, CPP aluminized film, aluminum film
