Basic Functions:

The machine is equipped with a floor-standing conveying mechanism, which can automatically convey products and can be connected to filling machines, capping machines, and sealing machines to realize an automated production line;
Can apply one label on a round bottle, ! or two labels on the front and back;
Adopt cylinder positioning and labeling method, stop the bottle for labeling, effectively eliminate bubbles and high labeling accuracy;
The labeling head is equipped with a multi-dimensional adjustment seat, and the handwheel can be used to adjust the labeling head up, down, left and right;

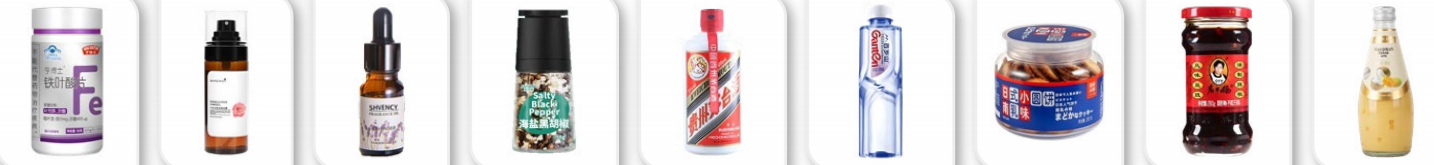

Applied to various round bottles such as: medicine bottles, chili sauce bottles, health product bottles, honey bottles, soy sauce bottles, plum bottles, PET bottles, beverage bottles, cosmetic bottles, mineral water bottles, glass bottles, tin cans, etc.

Technical Parameters
Labeling Accuracy Labeling Speed
Applicable Product Diameter (for round bottles) and Height
Applicable Label Size
Overall Machine Size
Applicable Power Supply
Overall Machine Weight
+1mm
20~60 pcs/min Diameter: Ф40mm~Ф110mm Height: 25mm~300mm Length: 20mm~285mm; Width: 20mm~175mm 1810mm*1100mm*1400mm (LengthWidthHeight) 220V/50Hz 165kg
