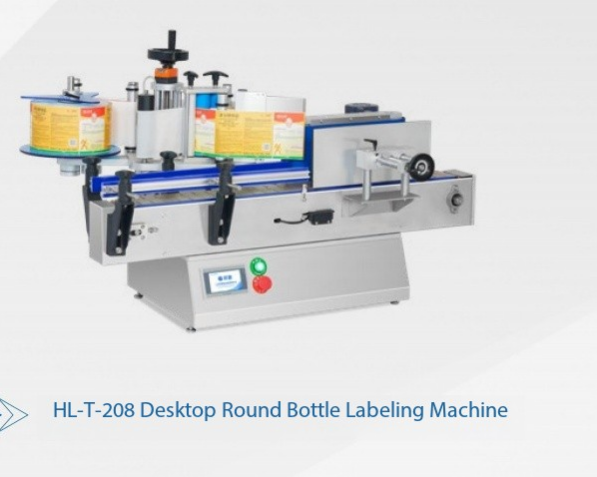

Basic Functions:

This machine is equipped with a desktop conveying mechanism, which can automatically convey products and can be connected to automatic filling machines, capping machines, and sealing machines to realize an automated small production line.
It can apply one label on a round bottle, or two labels on the front and back.
It adopts a cylinder positioning labeling method to stop the bottle for labeling, which effectively eliminates bubbles and ensures high labeling accuracy.
The labeling head is equipped with a mini adjustment seat, and the labeling head can be Fine-tuning (fine-tuned) up and down, left and right, and in inclination.

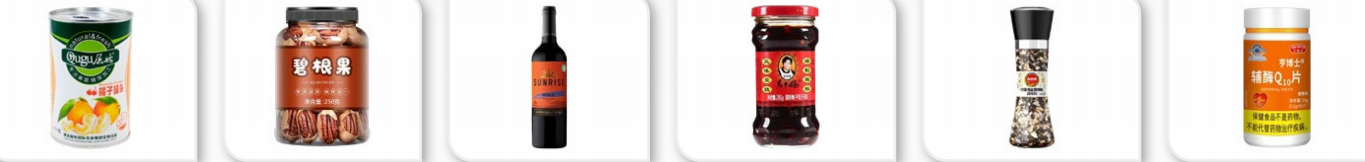

Applicable to various round bottles such as: medicine bottles, chili sauce bottles, health product bottles, honey bottles, soy sauce bottles, vinegar bottles, plum bottles, PET bottles, beverage bottles, cosmetic bottles, mineral water bottles, glass bottles, tin cans, etc.

Technical Parameters:
Labeling Accuracy: ±1mm
Labeling Speed: 15~45 pcs/min
Applicable Product Diameter and Height: Diameter: Ф25mm~Ф110mm; Height: 25mm~300mm
Applicable Label Size: Length: 20mm~285mm; Width: 20mm~175mm
Overall Machine Dimensions: Length 1350mm * Width 1000mm * Height 820mm (Length * Width * Height)
Applicable Power Supply: 220V/50Hz
Overall Machine Weight: 75kg
