Basic Functions:

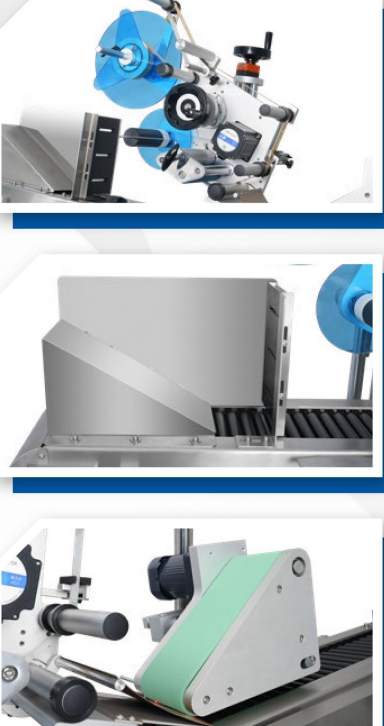

The machine is equipped with a roller conveyor mechanism. Bottles are conveyed between the rollers, suitable for various products that are unstable when standing, and label them in a horizontal conveying manner;
The machine is equipped with a feeding mechanism. A batch of bottles is stacked in the feeding box, and the bottles are automatically fed to the conveyor belt, saving labor;
Adopting a rubbing and rolling labeling method, labels are applied during the bottle conveying process, with a high speed;
The labeling head is equipped with an 8-dimensional adjustment base, and the labeling head can be adjusted up and down, left and right, and tilt angle with a handwheel, which is very convenient.

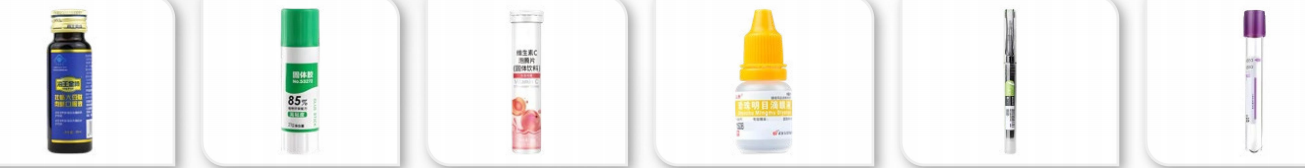

Applied to small-diameter round bottles such as: oral liquid bottles, vials, test tubes, nucleic acid tubes, lipsticks, electronic cigarette oil, essential oil bottles, ham sausages, pen batteries, etc.

Technical Parameters:
Labeling Accuracy: ±1mm
Labeling Speed: 60~200 pcs/min
Applicable Product Diameter: Outer diameter ф16mm~21mm
Applicable Label Size: Length: 20mm~100mm; Width: 20mm~130mm
Overall Machine Dimensions: 2100mm*800mm*1400mm (LengthWidthHeight)
Applicable Power Supply: 220V/50Hz
Overall Machine Weight: 180kg
