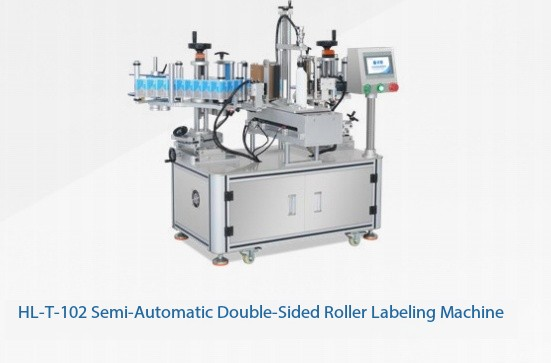

Basic functions:

The machine is equipped with an automatic conveyor belt and can be used as a standalone unit. It can be connected to filling machines, capping machines, and sealing machines to form an automated production line;
It can apply double labels on both sides of the bottle (by turning off one of the labeling heads, it can apply a single label on one side of the bottle);
Equipped with a bottle separating device to Keep a certain distance between bottles; equipped with an orientation device to ensure the bottles are centered during conveying; equipped with a top pressure belt device to ensure the bottles are pressed tightly and do not deviate during conveying, with upper and lower synchronization;
Equipped with an 8-dimensional adjustment base, the labeling head can be adjusted up and down, left and right, front and back, and tilt angle, which is very convenient;
Equipped with a positioning type round bottle labeling mechanism, which can apply one label around the circumference of a round bottle and two labels on the front and back while applying labels on both sides of a flat bottle;
Applied to various square and flat bottles such as: lubricating oil, car cleaners, glass water, mineral water, mineral water, beverage bottles, laundry detergent bottles, lampblack cleaning honey bottles, chemical reagent bottles, shampoo, health wine, nut bottles, biscuit bottles, chili oil bottles, chili sauce bottles, etc. for single-sided or double-sided labeling, including round bottles.

Technical parameters:
Labeling accuracy: ±1mm
Labeling speed: 30~160 pcs/min
Applicable product size: Flat bottle: Length: 20mm~250mm
Width: 40mm~100mm (round bottle diameter 100mm) Height: 60mm~280mm
Applicable label size: Length: 20mm~200mm; Width: 20mm~175mm
Overall machine size: 3150mm*1400mm*1450mm (LWH)
Applicable power supply: 220V/50Hz
Overall machine weight: 300kg
