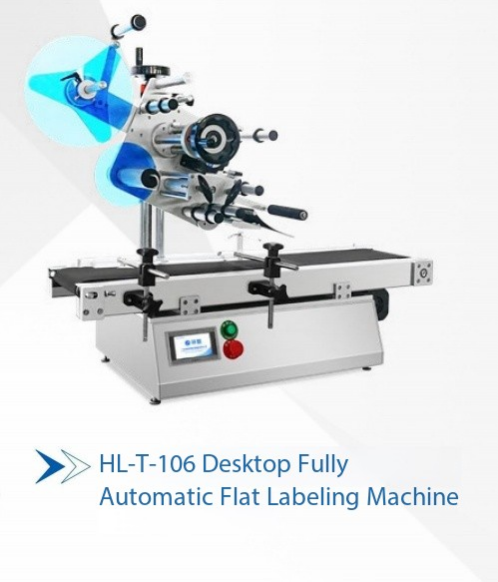

Basic Functions:

The machine is equipped with a floor-standing conveying mechanism, which can automatically convey products and can be connected to other assembly lines front and rear for use;
A flat labeling head is used. During product conveying, the labeling head sends out labels to be applied to the products, and labeling and label covering are completed.
Equipped with a multi-dimensional adjustment seat, the labeling head can be adjusted up and down, left and right, which is very convenient. 4. It is applied to flat labeling of various electronic products, cosmetics, food, paper boxes, etc.

Technical Parameters:
Labeling Accuracy: ±1mm
Labeling Speed: 40~120 pcs/min
Applicable Product Size: Length: 40mm~250mm; Width: 40mm~200mm; Height: 0.2mm~100mm
Applicable Label Size: Length: 6mm~250mm; Width: 20mm~175mm
Overall Machine Size: 1500mm*700mm*1300mm (LengthWidthHeight)
Applicable Power Supply: 220V/50Hz
Overall Machine Weight: 165kg
