Basic Functions:

The machine is equipped with an automatic Pagination Machine, which can automatically feed products onto the conveyor belt, saving labor;

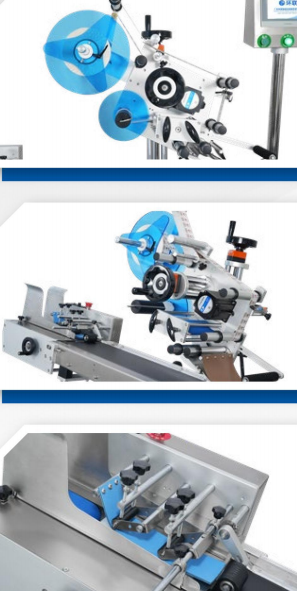

Using an upper flat labeling head, adopting the rolling labeling method, during product conveying, the labeling head sends out labels to be applied to the products, and labeling and covering are completed;
Equipped with a material receiving device, which can stack finished products neatly;
The conveyor belt is inclined, which is more conducive to unilateral alignment of light/thin products, with high labeling accuracy; (for thick products, a flat conveyor belt can also be used);
For light/easy-to-warp products, the conveyor belt is equipped with a pressing plate to press the products forward for conveying, ensuring normal labeling;
Equipped with an 8-dimensional adjustment base, the labeling head can be adjusted up and down, left and right, and in inclination, which is very convenient;
Applied to automatic Pagination labeling of various cards, plastic bags, paper-plastic bags, hang tags, color boxes, book covers, folder covers, etc.

Technical Parameters:
Labeling Accuracy: ±1mm (excluding product and label errors)
Labeling Speed: 40~200 pcs/min (related to product and label sizes)
Applicable Product Size: Length: 60mm~250mm; Width: 60mm~220mm; Height: 0.2mm~10mm
Applicable Label Size: Label Length: 6mm~250mm; Width: 20mm~175mm
Overall Machine Size: 2250mm*750mm*1400mm (LengthWidthHeight); (including material tray)
Applicable Power Supply: 220V/50Hz
Overall Machine Weight: 200kg
