Basic Functions:

The machine is equipped with a floor-standing conveying mechanism, which can automatically convey products and can be connected to other assembly lines front and rear for use;
Equipped with an upper plane labeling head + a lower plane labeling head, labeling from both upper and lower sides simultaneously (the lower labeling head is inserted from the middle of the two sections of conveying to feed labels upward)

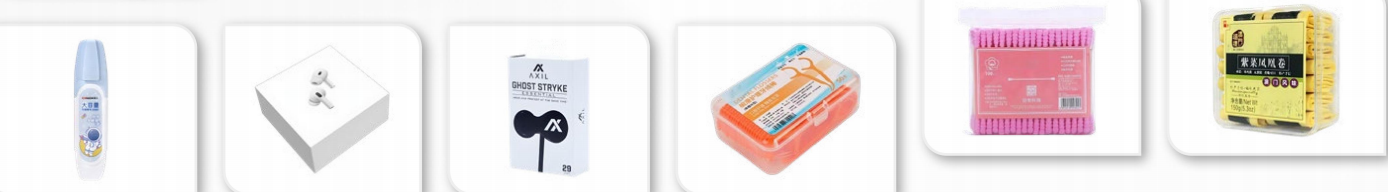

Applied to various products that need labels on both upper and lower sides, such as candy boxes, jelly boxes, chocolate boxes, folders, books, paper boxes, electronic products, pet food, etc.

Technical Parameters:
Labeling Accuracy: ±1mm (excluding product and label errors)
Labeling Speed: 30~160 pcs/min (related to product and label sizes)
Applicable Product Sizes: Length: 40mm~250mm (customized); Width: 40mm~200mm (customized); Height: 0.2mm~100mm (customized)
Applicable Label Sizes: Length: 6mm~250mm; Width (base paper width): 20mm~175mm
Overall Machine Dimensions: Approximately 2500mm*650mm*1400mm (LengthWidthHeight) (including card separation and material receiving)
Applicable Power Supply: 220V/50Hz
Overall Machine Weight: Approximately 160kg
