Basic Functions:

The machine is equipped with a floor-standing conveying mechanism, which can automatically convey products and can be connected to other assembly lines (such as automatic cartoning machines) at the front/rear.
It can apply corner labels on both sides of the box seal. By turning off the motor on one side, it can apply corner seals on only one side.
Equipped with a top-pressing belt device, which presses the box to apply labels and corner covering during forward conveying, resulting in high label closure.

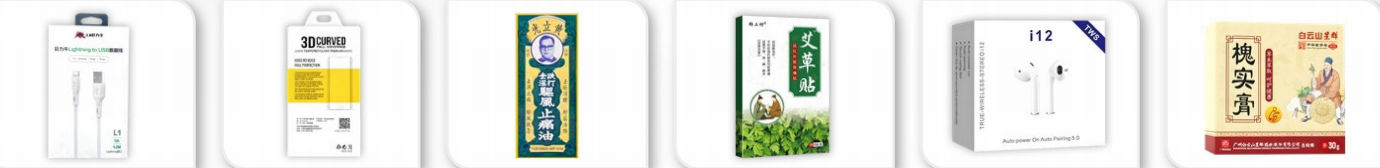

Applied to corner seal labeling of various formed cartons, such as electronic cigarette packaging boxes, medicine boxes, reagent kits, earphone boxes, data cable boxes, cosmetic boxes, etc.
This machine uses a side label head, and the labeling process is to cover the label from the side upwards. If labeling from the top is required, model HL-T-809 should be selected.

Technical Parameters:
Labeling Accuracy: ±1mm (excluding product and label errors)
Labeling Speed: 40~120 pcs/min (related to product and label size)
Applicable Product Size: The width of the box should be greater than 70mm (the width direction of the conveyor belt is the box width), and other dimensions are customized according to the box.
Applicable Label Size:
Overall Machine Dimensions: Label Diameter: 15~50mm 2300mm*1450mm*1300mm (LengthWidthHeight)
Applicable Power Supply: 220V/50Hz
Overall Machine Weight: 300kg
