Step Angle : 1.8°
High Torque
Low Noise
Number of Phases：2
Frame Size: 20*20mm
Small Step Angle
High Precision
Technical Data：
Name ：

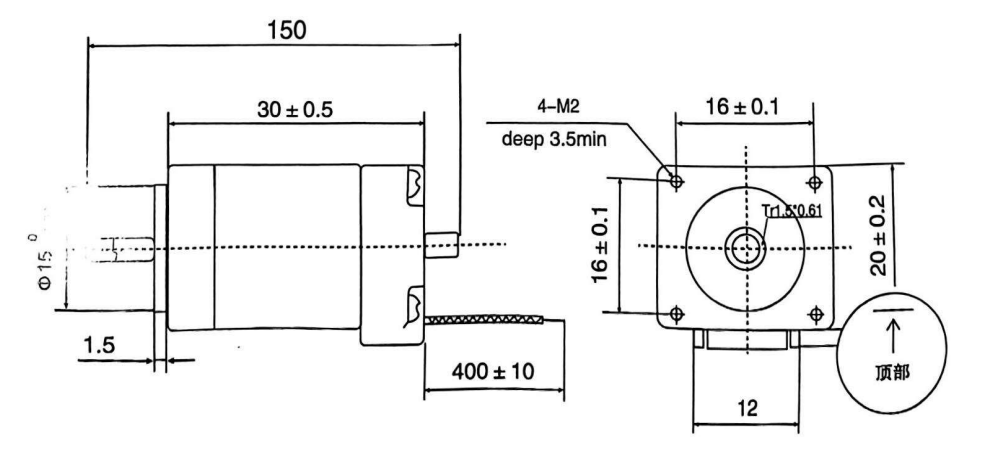

20BYGH Through-hole Stepper Motor
Size： 202030MM
Model： 20BYGH300 Through-hole
Phase Current： 0.5A
Weight： 0.06KG
Phase Resistance： 6.5Ω
Step Angle： 1.8°
Phase Inductance： 1.7mH
Warranty Period： One Year
Phase Voltage： 3.2V
Screw Diameter： 3.5MM
Number of Leads： 4
Lead Screw Pitch： 0.61MM
Static Torque： 0.18NM
Screw Length： 150MM
