Step Angle: 1.8°
High Torque
Low Noise
Number of Phases: 2
Frame Size: 28*28mm
Small Step Angle
High Precision
Technical Data:
Name:
28BYGH Through-hole Stepper Motor

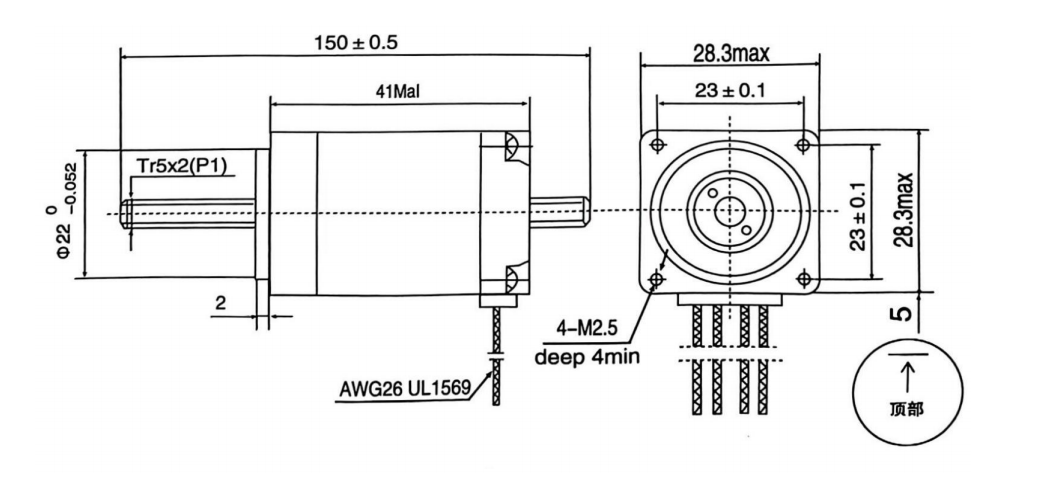

Dimensions: 282841MM
Model: 28BYGH411 Through-hole
Phase Current: 0.75A
Weight: 0.08KG
Phase Resistance: 7.5Ω
Step Angle: 1.8°
Phase Inductance: 4.5mH
Warranty Period: 1 Year
Phase Voltage: 5.6V
Screw Diameter: 5MM
Number of Lead Wires: 4
Lead: 2MM
Static Torque: 0.2NM
Screw Length: 150MM
