57mm Linear Lead Screw Stepper Motor

Category：14.1 Special Application Equipment
Factory Number(FN):：142#

Send Inquiry Contact us Whatsapp

Description

Step Angle: 1.8°

High Torque

Low Noise

Number of Phases: 2

Frame Size: 57*57mm

Small Step Angle

High Precision

Technical Data:

Name:

57BYGH Linear Screw Stepper

Motor

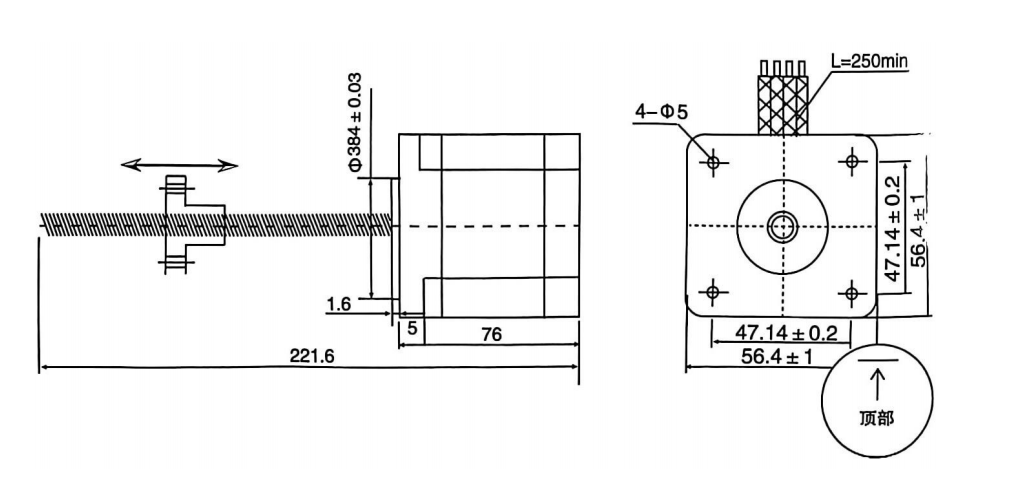

Dimensions: 57*57*76MM

Model: 57BYGH748

Phase Current: 3A

Weight: 1.1KG

Phase Resistance: 1.1Ω

Step Angle: 1.8°

Phase Inductance: 4.6mH

Warranty Period: 1 Year

Phase Voltage: 3.3V

Screw Diameter: 10MM

Number of Lead Wires: 4

Lead: 2MM 4MM 10MM 20MM

Static Torque: 1.6NM

Screw Length:

200MM (Contact customer service for longer lengths)
