Step Angle: 1.8°
High Torque
Low Noise
Number of Phases: 2
Frame Size: 57*57mm
Small Step Angle
High Precision
Technical Data:
Name
57BYGH Through-hole Stepper Motor

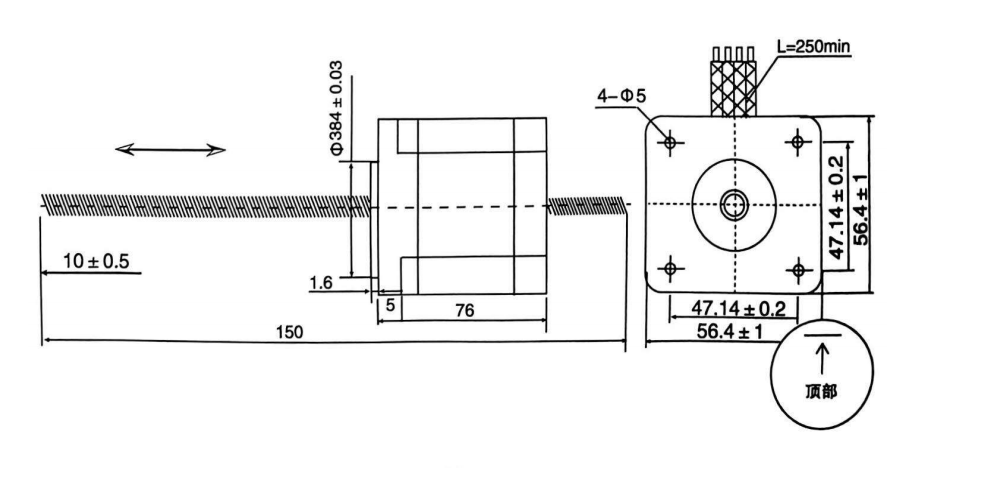

Dimensions: 57*57*76MM
Model: 57BYGH748
Phase Current: 3A
Weight: 1.1KG
Phase Resistance: 1.1Ω
Step Angle: 1.8°
Phase Inductance: 4.6mH
Warranty Period: One Year
Phase Voltage: 3.3V
Screw Diameter: 10MM
Number of Leads: 4
Lead Screw Pitch: 2MM 4MM 10MM 20MM
Static Torque: 1.6NM
Screw Length:
150MM (Contact Customer Service for Longer Lengths)
