Step Angle : 1.8°
High Torque
Low Noise
Number of Phases：2
Frame Size: 57*57mm
Small Step Angle
High Precision
Technical Data：

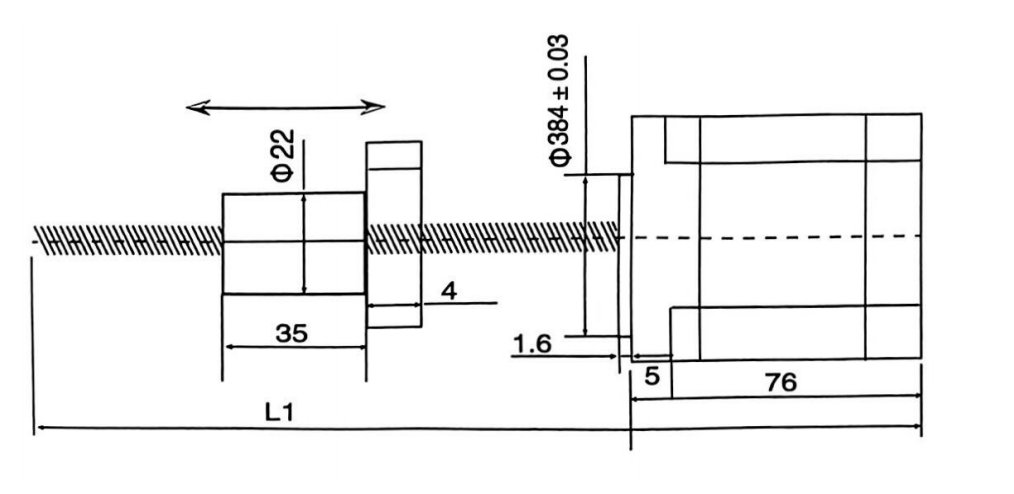

Name： 57BYGH Ball Screw Motor
Size： 575776MM
Model： 57BYGH748
Phase Current： 3A
Weight： 2.05KG
Phase Resistance： 1.1Ω
Step Angle： 1.8°
Phase Inductance： 4.6mH
Warranty Period： 1 Year
Phase Voltage： 3.3V
Screw Diameter： 12
Number of Leads： 4
Screw Length：300MM (Contact Customer Service for Longer Length)
Static Torque： 1.6NM
