Step Angle: 1.8°
High Torque
Low Noise
Number of Phases: 2
Frame Size: 86*86mm
Small Step Angle
High Precision
Technical Data:
Name: 86BYGH Through-hole Stepper Motor

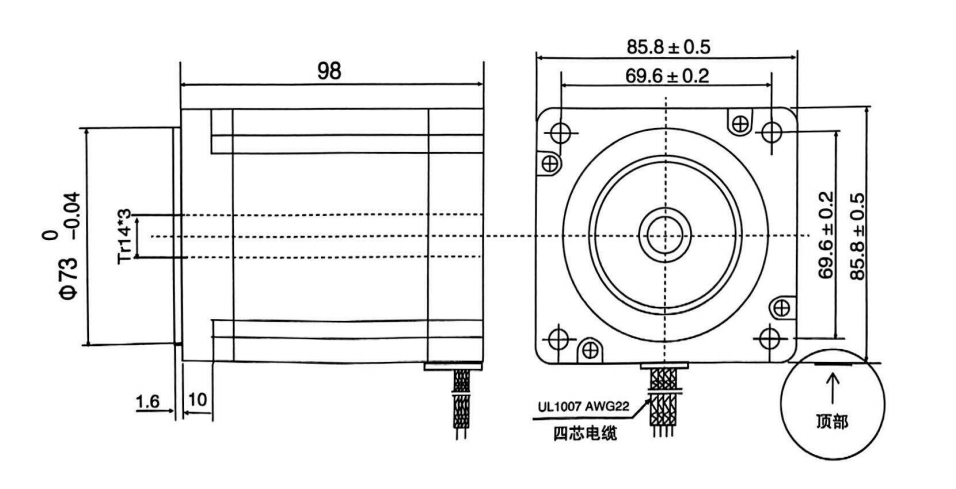

Size: 868698MM
Model: 86BYGH301
Phase Current: 4A
Weight: 3KG
Phase Resistance: 0.4Ω
Step Angle: 1.8°
Phase Inductance: 3.5mH
Warranty Period: 1 Year
Phase Voltage: 1.6V
Screw Diameter: 14MM
Number of Lead Wires: 4
Screw Length: 500MM (Contact Customer Service for Longer Lengths)
Static Torque: 5.5NM
Lead: 3MM
