Applicable Materials:
· Phosphogypsum
· Desulfurized Gypsum
· Self-leveling
· Lightweight Mortar
· Polymer Mortar
· Anti-crack Mortar
· Dry Mortar
· High Ductility Mortar
Applicable Scenarios:
· Public Construction Projects
· Housing Construction Projects
· Municipal Projects
· Office Buildings
· Warehouses
· 3D Printing, etc.
Product Advantages:

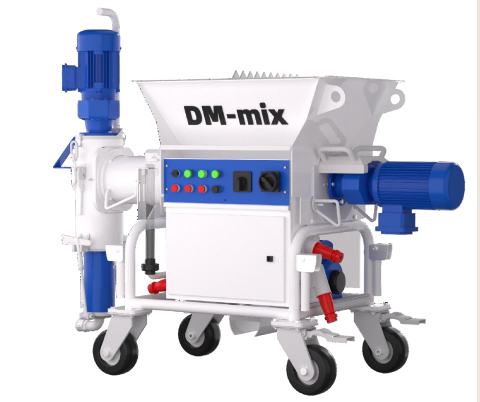

The patented "horizontal + vertical" double stirring technology enables unparalleled stirring function. The exclusively designed pump body is applicable to a wider range of materials with adjustable pumping pressure, providing a large flow rate of up to 50L/min. It adopts intelligent pressure control, automatically stops when the machine is short of water, and never clogs the pipe. Meanwhile, through our independently developed IoT module, the machine's location, on/off time, running time and data can be remotely monitored, collected and stored.
High Efficiency:
Large flow rate of 50L/min, conveying capacity of 3 tons/hour, can replace 5-8 workers.
High Quality:
Horizontal + vertical double full, automatic and continuous stirring to ensure construction quality.
High Profitability:
Save more than 60% of labor costs
The cost can be recovered with 10,000㎡ construction area.
Product Parameters:
Overall Weight: 250kg
Conveying Capacity: 36L-60L/min
Conveying Distance: Horizontal 60m, Vertical 30m
Conveying Pressure: 30BAR
Mixing Pump: 5.5KW 380V50HZ
Conveying Pump: 3.0KW 380V50HZ
Water Pump: 0.75KW, 60L/min, 4BAR
Construction Efficiency: 180~250㎡/h
Overall Dimensions: 135*640*1930cm
