Applicable Materials:
·Dry Powder Gypsum
·Gypsum Mortar
·Lightweight Gypsum
·Heavyweight Gypsum
·Thick-layer Fireproof Coating
·Thick-layer Anticorrosive Coating
·Real Stone Paint
Applicable Scenarios:
·Self-built Houses
·High-end Residences
·Office Buildings
·Warehouses
Product Advantages:

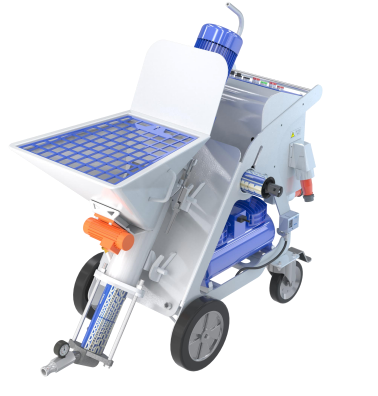

The D70 Gypsum Spraying Machine supports various materials such as dry gypsum powder, gypsum mortar, and lightweight gypsum, with core advantages including "dual voltage adaptation, split-type portability, precise mixing and spraying, and intelligent easy operation". The 2025 upgraded version has been fully iterated to address the pain points of the old version, transforming from an industrial-grade equipment to a "home decoration construction artifact", solving the efficiency and cost problems in home decoration, old house renovation, and small commercial spaces.
Dual Voltage:
220V output flow can reach 20L/min, 380V output flow can reach 30L/min
High Quality:
Vibration motor assists in feeding, no accumulation, no supply interruption, continuous construction in various scenarios without interruption, higher efficiency
High Profitability:
Save more than 60% of labor costs
The cost can be recovered with a construction area of 10,000㎡
Product Parameters:
Main Machine: 5.5KW/280V
Screw Pump: EC020 (220V)/D8-2 (380V)
Maximum Aggregate Particle Size: <5mm
Theoretical Output: 20L/min (220V)/30L/min (380V)
Maximum Working Pressure: 30bar
Air Compressor: 0.9KW/220V (Keman)
Vibration Motor: 0.04KW/220V
Water Pump: 0.33KW/220V
Feeding Height: 940mm
Hopper Capacity: 38L
Bare Machine Dimensions: 1270*630*1336mm
