Applicable Materials:
· Cement mortar
· Finished mortar
· Self-mixed mortar
· Anti-crack mortar
· Lightweight gypsum
· Heavy gypsum
· Polymer mortar
· High ductility mortar
Applicable Scenarios:
· Public construction projects
· Housing construction projects
· Municipal projects
· Office buildings
· Warehouses
Product Advantages:

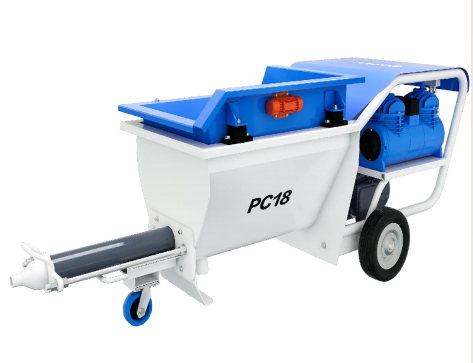

PC18 adopts our independently developed and mature worm pump technology, with a large pitch design suitable for mortar in the Chinese market. It greatly simplifies the construction process, improves work efficiency, and is applicable to interior and exterior wall plastering projects. 7.5KW pure copper motor provides continuous and stable power, extending service life by more than 30%. 3.5KW air compressor integrates material feeding and air supply, with pneumatic switch for convenient and quick spraying, saving materials and worry. Specially made high-pressure material hose spray gun is wear-resistant, durable and high-pressure resistant, extending service life by 37%. The vibrating screen can filter large particles of stones, wear-resistant casters adapt to construction sites, and self-contained aviation plug for easy power connection.
High Efficiency:
Large flow rate of 50L/min, high-speed spraying, can spray 3CM thickness at one time, can replace 5~8 workers
High Quality:
Worm pump feeding, high pressure without ash falling, high density without hollowing and cracking, ensuring construction quality
High Profit:
Save labor cost by more than 60%
The cost can be recovered with 10,000㎡ construction area
Product Parameters:
Overall Weight: 210kg
Conveying Capacity: 45L/min
Conveying Distance: 60m horizontal, 30m vertical
Conveying Pressure: 70BAR
Main Motor: 7.5KW 380V50HZ
Air Compressor: 3.5kw (German Keman)
Maximum Aggregate Size: 6MM
Construction Efficiency: 180~250㎡/h
Overall Dimensions: 200*80*90cm
