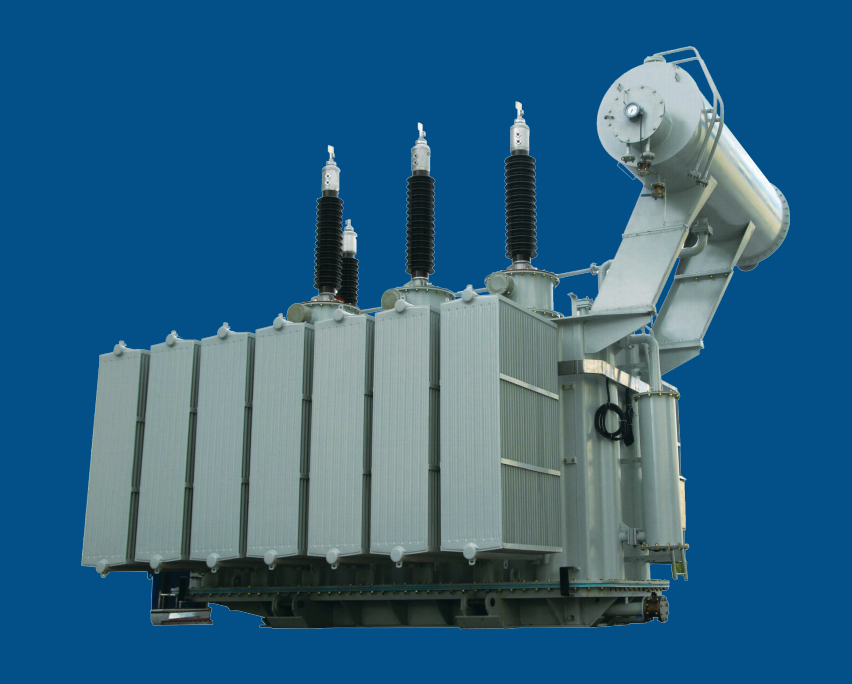

●The iron core of the 110kV class oil-immersed power transformer is made of high-quality oriented silicon steel sheets stacked in multi-step lamination, and the surface is coated with curing paint. It has the characteristics of low loss and low noise.
●The coil adopts an internal and external stay structure, and a high-strength hard paper tube structure is used between the coil and the iron core and between the coils, thus effectively ensuring the short-circuit impact resistance.
●The tank wall of the oil tank adopts a one-time forming bent corrugated structure, which increases the mechanical strength of the oil tank and has an elegant appearance.
●An all-round positioning structure is adopted between the transformer body and the oil tank to ensure the stability of product transportation and operation.

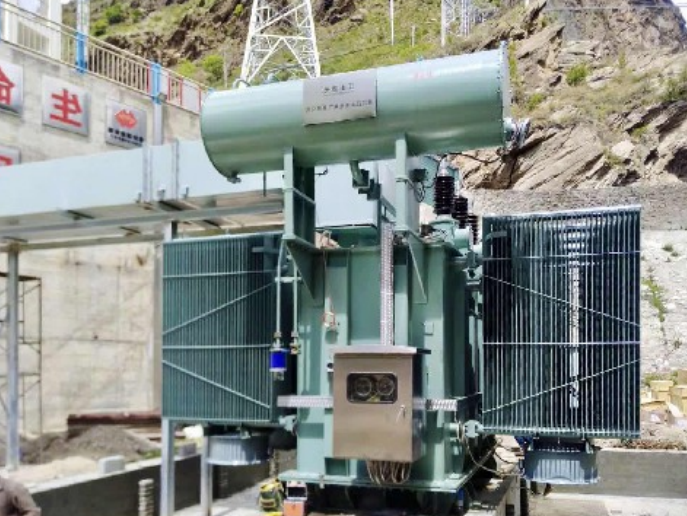

●Suitable for power plants, substations (distribution stations) and industrial fields.
●Implements national standards such as GBI 094 and GB6451.
