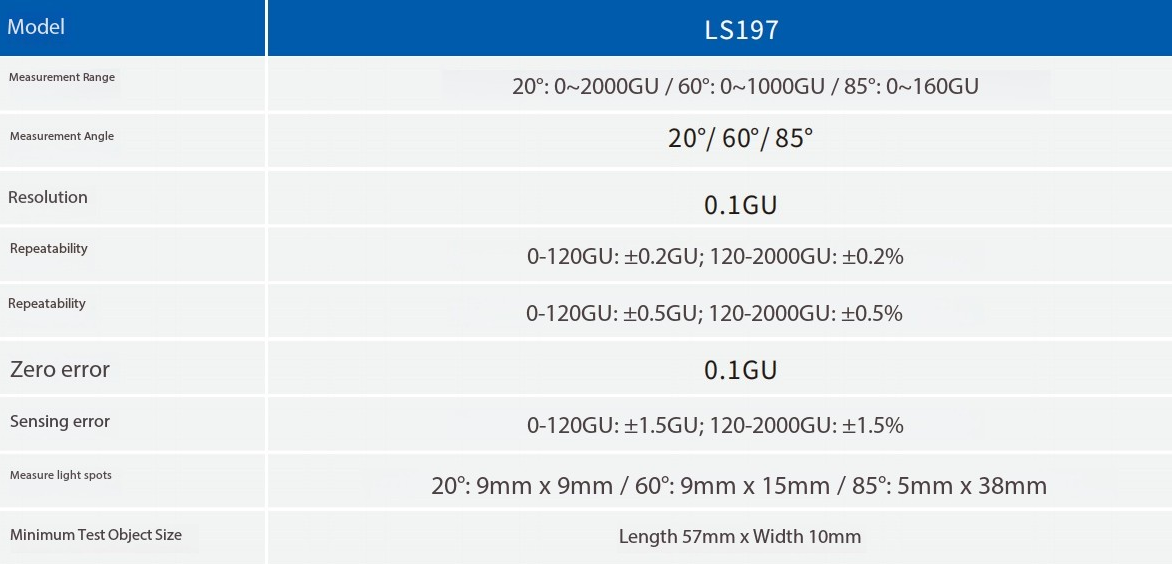

LS197 (Model): Product Features: 20°/60°/85° three angles, resolution 0.1GU, 57*10mm aperture, measuring range 2000GU, plastic shell

Suitable for more than 98% of industries in the market

Measure immediately after placing, automatic calibration, QC detection

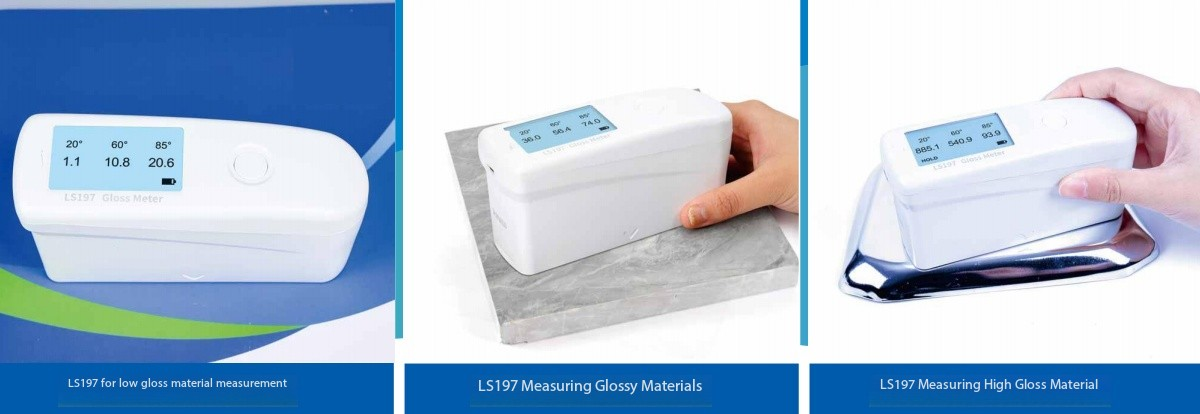

LS197 is a three-angle gloss meter that can measure gloss at three different angles of 20°, 60°, and 85° simultaneously. With a measuring range of up to 2000GU, all indicators within the full range meet the requirements of Class 1 working machine in the national JJG 696-2015 "Specifications for the Metrological Verification of Specular Gloss Meters and Gloss Plates". The instrument is widely used for surface gloss testing of materials such as coatings, paints, inks, plastics, tiles, papers, ceramics, stones, metals, etc.

Core Advantages:



20°, 60°, 85° multi-angle design, simultaneous measurement of gloss at different angles.

Multiple measurement angle combination modes are available to adapt to various measurement needs.

The maximum measuring range is up to 2000GU, which can measure high-gloss objects and even mirror-reflective objects.

Measure immediately after placing, easy to read, no need to wait.

QC mode, custom upper and lower limits, can automatically judge qualification, suitable for batch testing.

Can pass the inspection of authoritative metrology institutes, full range meets the national Class 1 working machine standard.

Built-in lithium battery, long-lasting battery life, can be used continuously for 65 hours after full charge.

Powerful PC software is gift, supporting online measurement and generating test reports for archiving.
