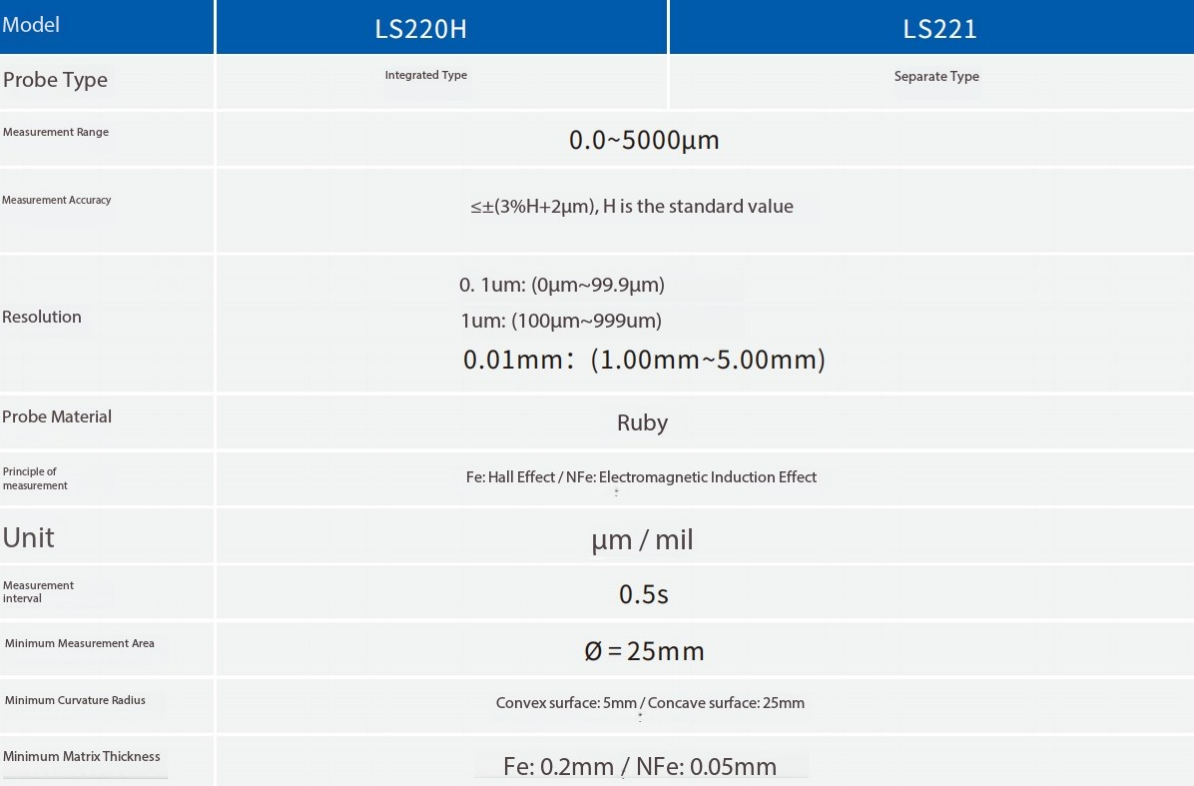

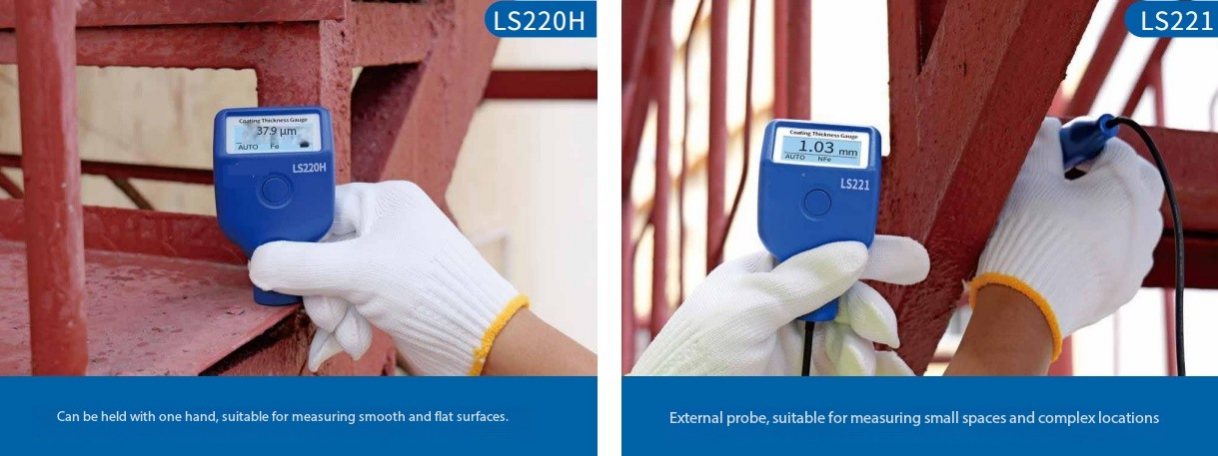

LS220H (Model): Product Features: Integrated design, suitable for both iron and aluminum, maximum measuring range 5000um
LS221 (Model): Product Features: Split design, suitable for both iron and aluminum, maximum measuring range 5000um

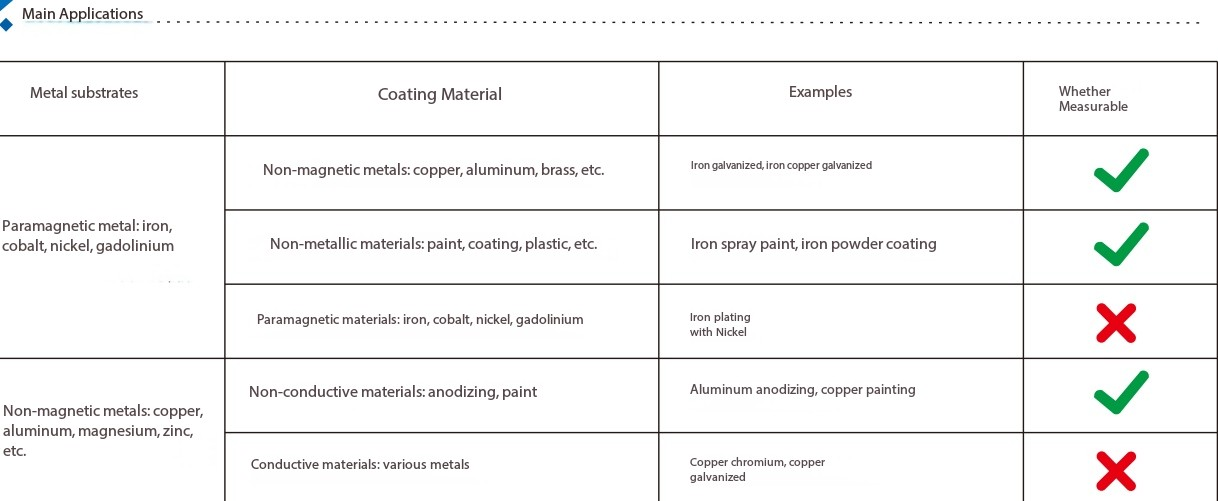

Coating thickness gauge is a professional instrument for detecting the thickness of coatings on metal surfaces. It adopts two measurement principles: Hall effect and eddy current. It can be used for measuring non-magnetic coatings such as paints, varnishes, enamels, chromium, and galvanizing on ferromagnetic metal substrates such as steel, and also for measuring non-conductive coatings such as paints, anodic oxide layers, and ceramics on non-magnetic metal substrates such as copper, aluminum, die-cast zinc, and brass. It is widely used in fields such as metal processing industry, coating industry, hardware industry, and shipbuilding industry.
Core Advantages:

Universal for ferromagnetic and non-magnetic metal substrates
Digital probe, stable data in repeated tests
Sensitive response, 0.5-second quick measurement
Ruby measuring head, longer service life
Accurate data, ensuring passing national metrology
Compact and portable, with a single button, easy to operate
