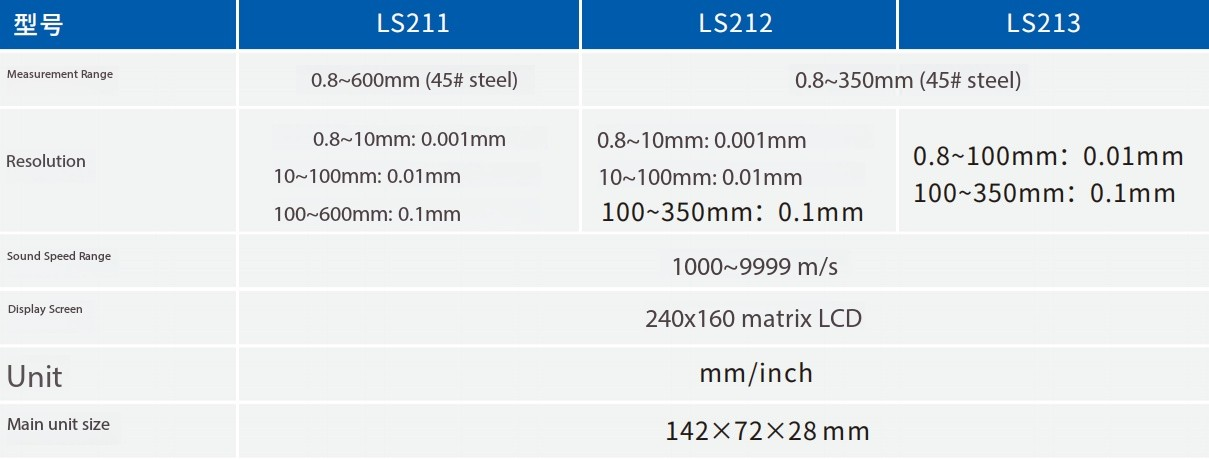

LS211 (Model): Product Features: 0.8-600mm measuring range, white, up to 0.001mm resolution
LS212 (Model): Product Features: 0.8-350mm measuring range, blue, up to 0.001mm resolution
LS213 (Model): Product Features: 0.8-350mm measuring range, orange, up to 0.01mm resolution
Non-destructive testing of thickness for materials such as metal, glass, ceramics, etc.

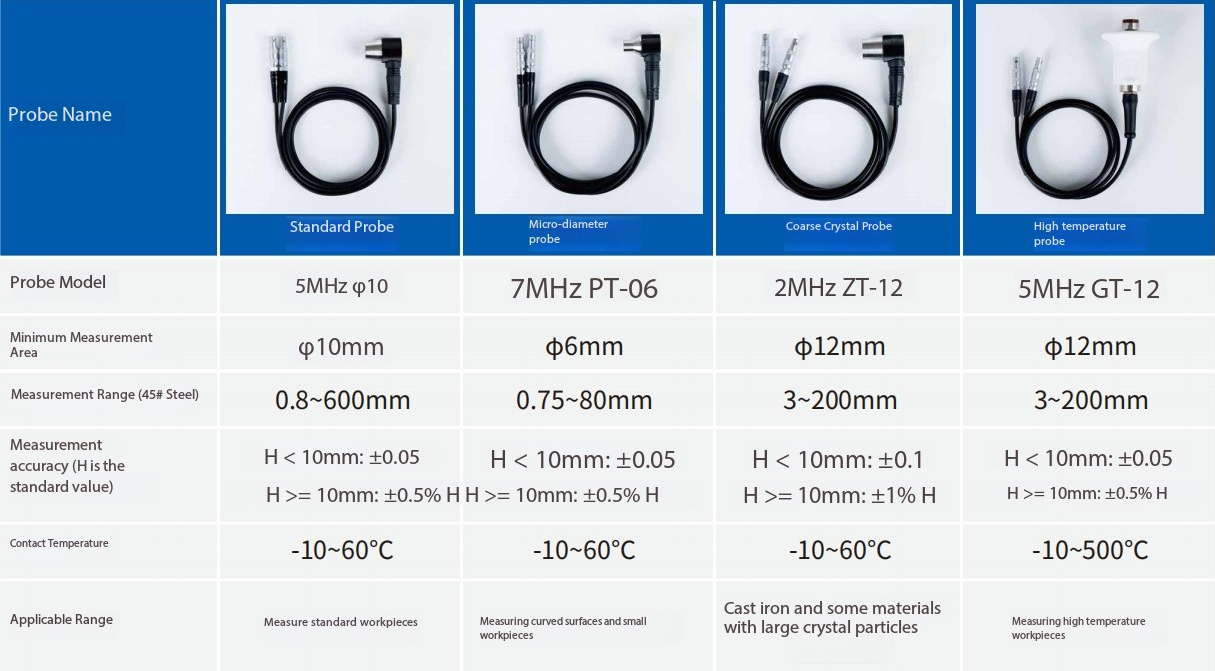

Ultrasonic thickness gauge uses the principle of ultrasonic pulse reflection for thickness measurement. The instrument can be equipped with four types of probes: standard probe, micro-diameter probe, coarse-grain probe, and high-temperature probe. It is professionally used for thickness measurement of materials that can transmit ultrasonic waves, such as metals (e.g., steel, aluminum, copper, etc.), plastics, ceramics, glass, etc. The instrument adopts a professional timing chip design with a maximum resolution of 0.001mm.
Product Advantages:
· Equipped with a professional timing chip, accurate measurement, ultra-high resolution at the micrometer level
· Large storage space, can save 999 groups of measurement data
· Built-in multiple material sound velocities optional
· Can reverse measure sound velocity based on thickness, can store up to 18 groups of material sound velocities
· Accuracy up to 0.05mm, ensuring compliance with national metrology standards
· High-sensitivity ultrasonic dual-crystal probe
· Automatic gain switching to adapt to different material measurements
· Switchable between statistical mode and OC detection mode
· Can connect to mobile phone APP to realize multi-group data storage and measurement data sharing
· Penetrate coating measurement, can accurately measure the actual thickness of the substrate under the workpiece coating (applicable with standard probe)
