Simultaneously measure multiple layer thicknesses, suitable for various substrates
LS216 is a handheld ultrasonic coating thickness gauge that adopts the pulse reflection ultrasonic measurement principle. It is professionally used for measuring the thickness of surface coatings and the thickness of the substrates themselves on non-metallic substrates that can conduct ultrasonic waves, such as ceramics, plastics, glass, etc. It can also measure the thickness of surface coatings on metal substrates and the thickness of the metal substrates themselves.
Product Advantages:

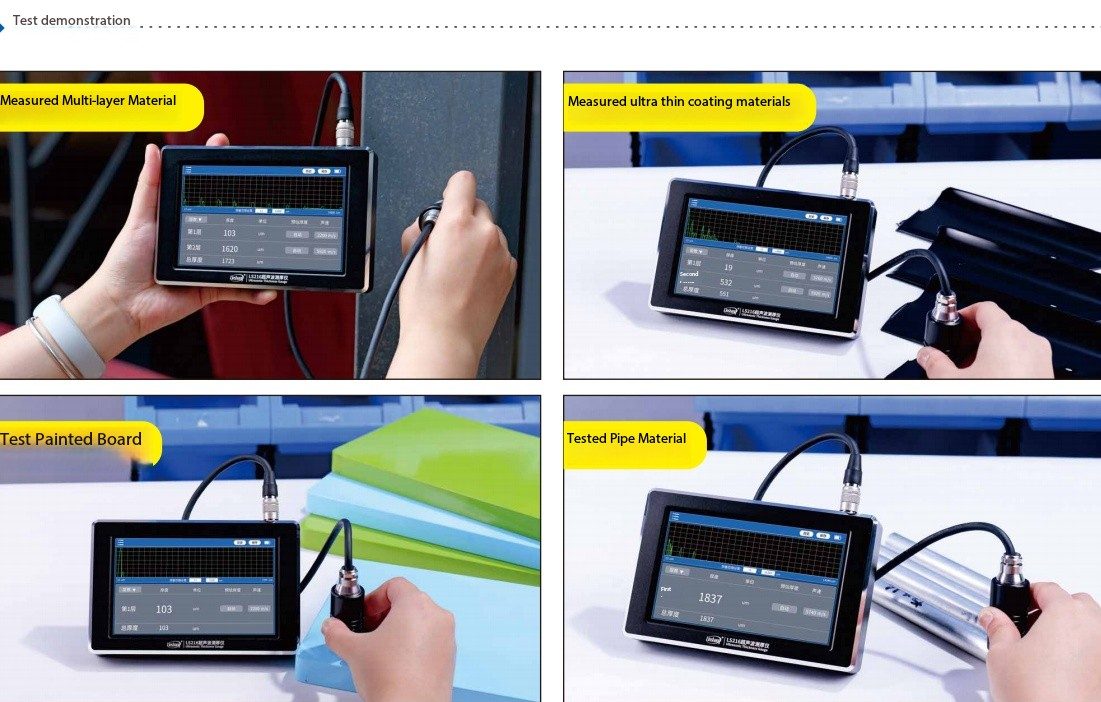

· Can simultaneously measure multiple layers of coatings or coating + substrate thickness, meeting complex testing needs.
· The instrument uses high-speed ADC data acquisition with a resolution of up to 1μm.
· High-definition IPS color large screen design, simple and convenient to operate.
· With automatic gain switching function, which can automatically select the appropriate gain according to the material type and thickness.
· Ultra-large measurement range: 13~1000um (epoxy resin coating), 300~14800um (45# steel).
· Measurement waveform display, can move the green cursor in the waveform display area to view data of other waveforms.
· With range setting function, which can effectively reduce interference echoes.
· With estimated thickness setting function, improving the accuracy of the instrument for multiple coating measurements.
· Three sound velocity setting methods, flexibly adapting to various scenarios.
· With ambient temperature compensation function, the values are stable, allowing long-period calibration.
