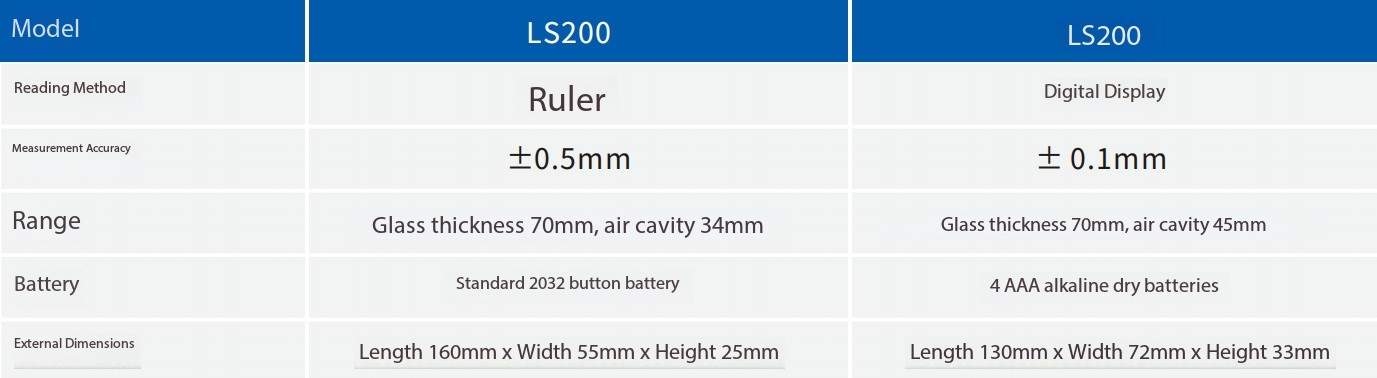

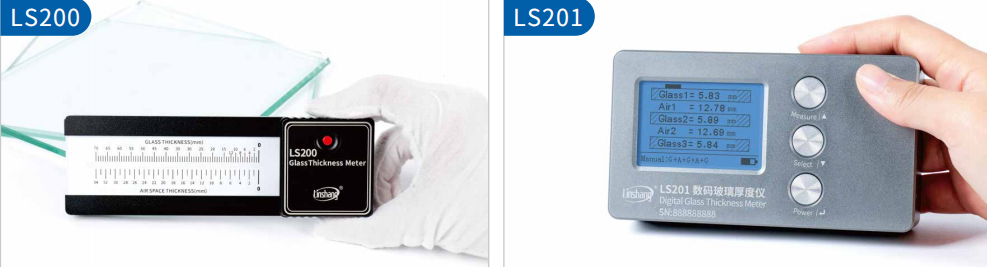

LS200 (Model): Product Features: Accuracy: ±0.5mm, Scale reading, Measuring range: Glass thickness 70mm, Air interlayer 34mm
LS201 (Model): Product Features: Accuracy: ±0.1mm, Digital display, Measuring range: Glass thickness 70mm, Air interlayer 45mm
Can measure glass thickness and air layer thickness, simple operation · fast response
LS200/LS201 glass thickness gauge adopts the principle of laser reflection, which can measure the thickness of glass and internal air layer on one side of the glass, especially suitable for occasions where traditional measuring tools such as scales or vernier calipers cannot or are not easy to operate, such as architectural laminated glass, insulating glass windows, etc.

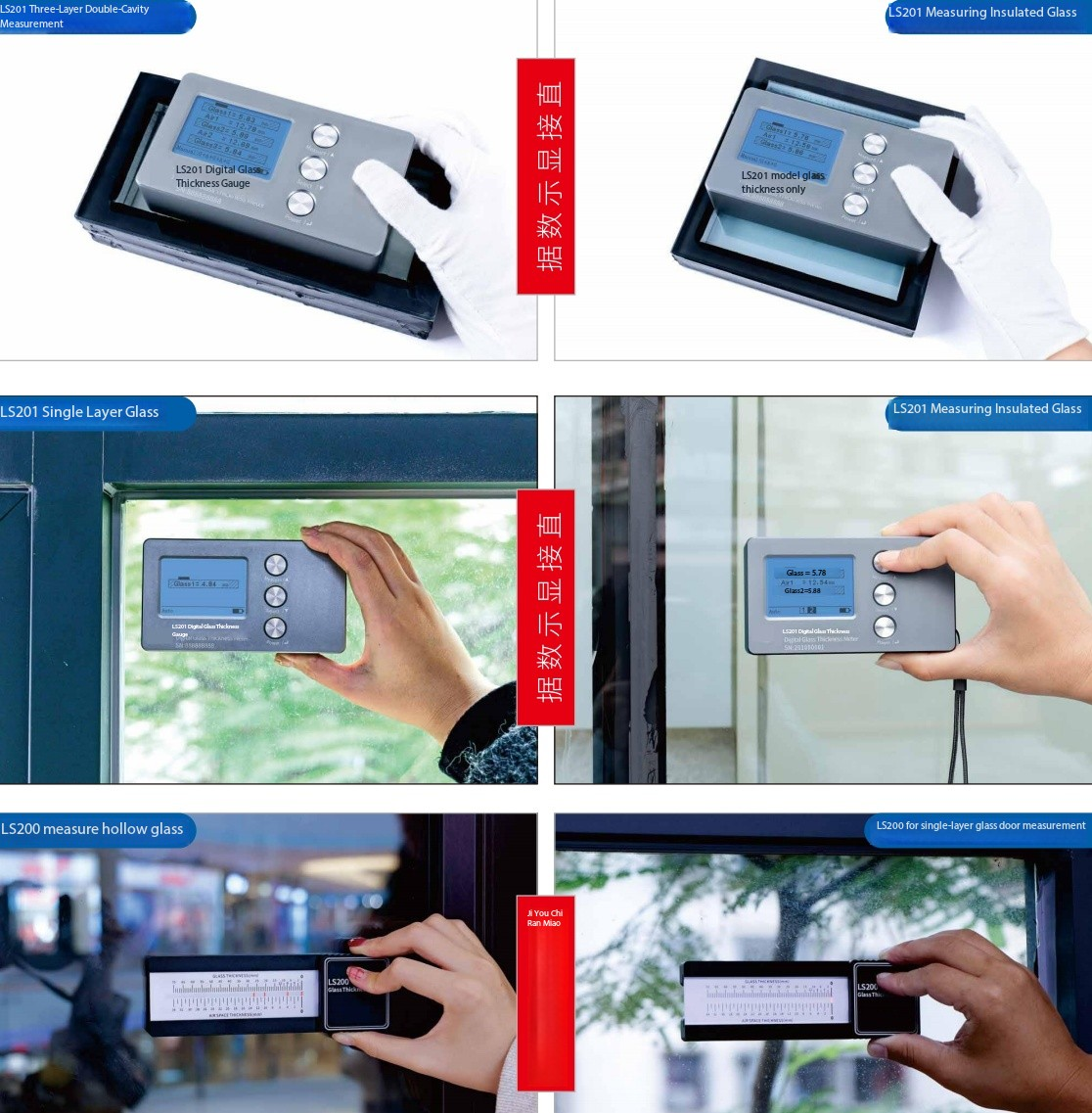

Measurable glass types include single-layer glass, multi-layer glass, two-glass one-cavity, three-glass two-cavity, laminated glass, laminated insulating glass, etc., and can be applied to various occasions such as quality inspection, supervision, teaching, production, sales, and engineering construction.
Core Advantages:

Laser reflection principle, one-sided rapid measurement of glass thickness.
Using imported CCD detector, the measurement accuracy can reach 0.1mm, and the test speed is fast.
Large measuring range, can measure up to 70mm glass thickness and 45mm air interlayer.
Dual-mode switchable, can automatically identify glass and air layer.
Supports switching between Chinese and English display modes.
Wide application range, can measure various glass materials such as three-glass two-cavity, insulating glass, laminated glass, etc.
