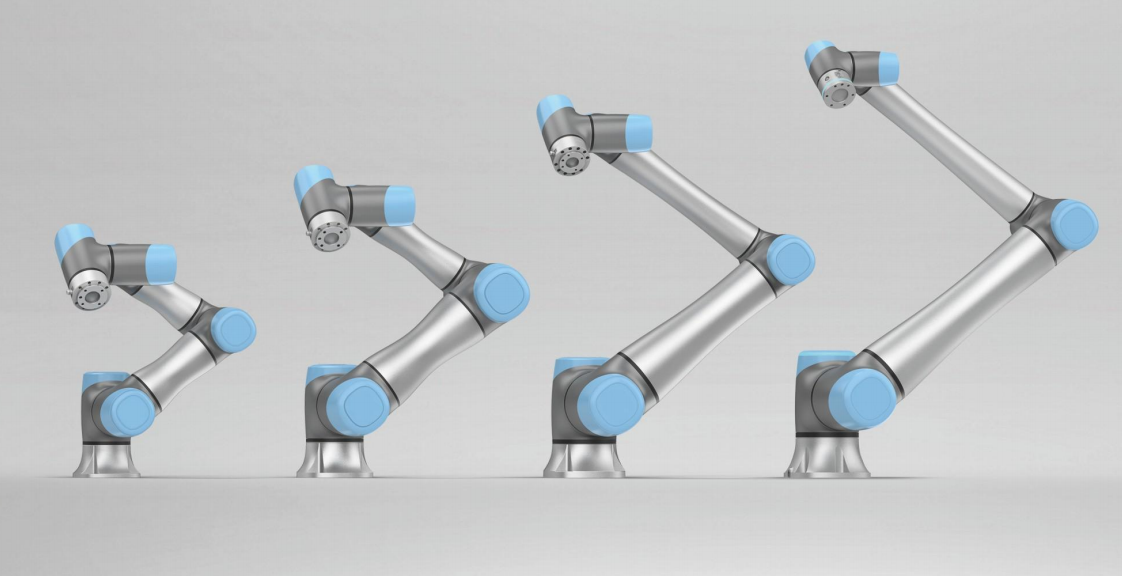

Series product parameters:
Body weight: 16.5kg
Maximum load: 3kg
Working radius: 620mm
Maximum linear speed: 2m/s
Joint movement range: J3: +155° (other joints ±360°)
Maximum joint speed: J1/J2 (180°/S) J3: (223°/S) J4/J5: (223°/S)
End 10: D1 (2 channels)/D0 (2 channels)/AI (2 channels multiplexed with RS485)
Repeatable precise positioning: ±0.02mm
IP rating: ±IP54
Temperature range: 0~50°0
Typical power consumption: 120W
Installation method: Any angle
Cable length from body to electrical cabinet: 5m
Material: Aluminum alloy, ABS plastic
