Product Introduction:

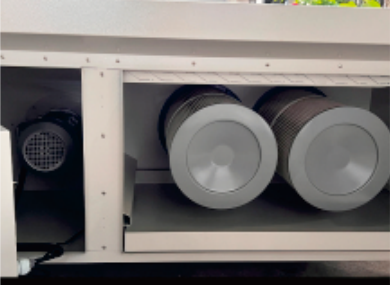

The explosion-proof dust-free grinding workbench adopts a unique humanized design completely. The dust collector and the workbench are integrated into a whole machine, with modular assembly. It has a built-in explosion-proof system, dust removal system, and fan sound insulation system. No pipeline connection is needed, and the cleaned air can be循环排放 indoors, reducing energy expenses. This workbench can effectively capture fine suspended dust without interfering with the movement and vision of workers. It is an ideal choice for medium and small-sized fine processing and grinding of various irregular parts. The workbench can effectively control the scattering of grinding dust, quickly suck the diffused and table dust into the ash hopper, and greatly reduce the configuration power of the equipment at the same time. The filter bag adopts advanced sub-micron filter material, which can effectively filter smoke and dust. According to the working conditions and user needs, the filter bag can be equipped with a pulse automatic ash cleaning device. The machine has significant characteristics such as large filtering area, high dust removal efficiency, energy saving and low consumption, convenient installation, simple maintenance, and beautiful and elegant appearance.
Instructions for Use:
Before turning on the power, check whether the voltage and power supply frequency are consistent with those specified on the equipment label; · Install the grounding wire; Check that the access door is in full contact and sealed; · Check whether the current of the power switch is consistent with the current used by the motor; The rotation direction of the motor must make the suction hood have a sense of air intake; · Check whether the high-efficiency filter cartridge is in tight contact; After selecting the operation area, fasten the brake part of the caster of the purifier to prevent the equipment from sliding; Do not open the box door when the purifier is in working state;
Dust must be cleaned regularly during long-term use. For the mechanical type, the filter cartridge can be directly removed and sprayed with an air compressor from the inside out to completely blow off the surface dust, then install and continue to use. For the electrostatic type, the discharge electrode plate needs to be pulled out, the surface of the electrode plate is cleaned, and then air-dried naturally before installation and continued use.
