Product Introduction:

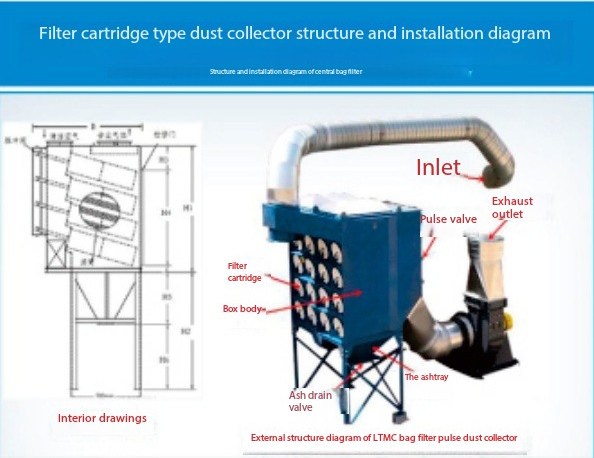

The structure of the cartridge dust collector consists of an air inlet pipe, an air outlet pipe, a box body, an ash hopper, a dust cleaning device, a flow guiding device, an air flow distribution plate, a filter cartridge and an electrical control device, similar to the structure of an air box pulse bag dust collector.
Working Principle: After the dust-containing gas enters the dust collector under the guidance of the fan, due to the sudden expansion of the air flow end face and the action of the air flow distribution plate, some of the coarse dust particles in the air flow settle into the ash hopper under the action of gravity and inertia force, and the fine and low-density dust particles enter the filter chamber. Through the comprehensive effects such as Brownian diffusion and fiber interception, the dust is deposited on the filter material of the filter cartridge.
