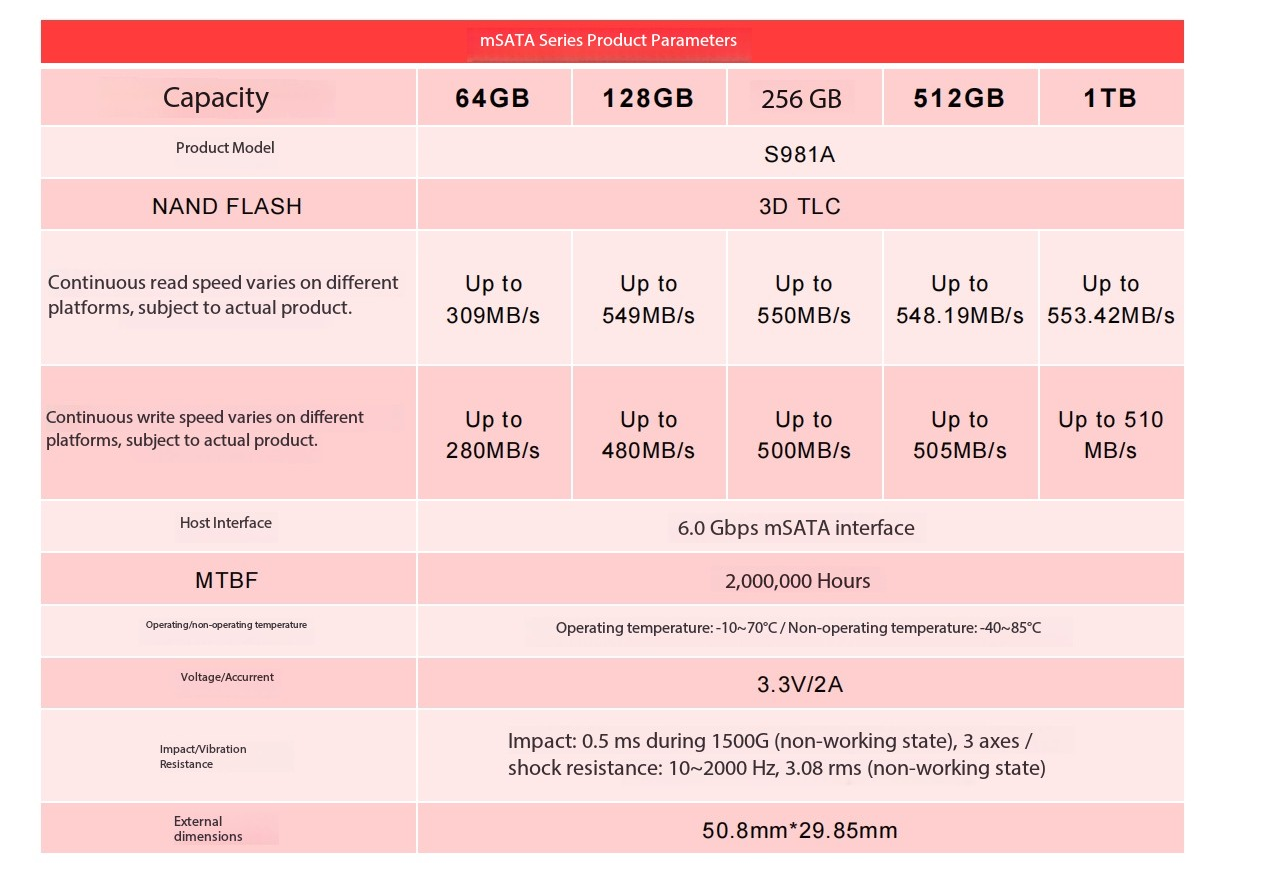

mSATA Series Product Parameters:
Capacity: 64GB, 128GB, 256GB, 512GB, 1TB
Product Model: S981A
NAND FLASH: 3D TLC
Host Interface: mSATA interface with 6.0Gbps
MTBF: mSATA interface with 6.0Gbps
Operating/Non-operating Temperature: Operating Temperature: -0~70°C / Non-operating Temperature: -40~85°C
Voltage/Current: 3.3V/2A
Shock/Vibration Resistance: Shock: 1500G for 0.5ms (non-operating state), 3axis / Vibration Resistance:
10~2000Hz, 3.08rms (non-operating state)
Dimensions: 50.8mm*29.85mm
Capacity: 64GB
Sequential Read speed varies by platform, subject to the actual product: Up to
309MB/s
Sequential Write speed varies by platform, subject to the actual product: Up to
280MB/s
Capacity: 128GB
Sequential Read speed varies by platform, subject to the actual product: Up to
549MB/s
Sequential Write speed varies by platform, subject to the actual product: Up to
480MB/s
Capacity: 256GB
Sequential Read speed varies by platform, subject to the actual product: Up to
550MB/s
Sequential Write speed varies by platform, subject to the actual product: Up to
500MB/s
Capacity: 512GB
Sequential Read speed varies by platform, subject to the actual product: Up to
548.19MB/s
Sequential Write speed varies by platform, subject to the actual product: Up to
505MB/s
Capacity: 1TB
Sequential Read speed varies by platform, subject to the actual product: Up to
553.42MB/s
Sequential Write speed varies by platform, subject to the actual product: Up to 510
MB/s
