Applications:
-Power supply, industrial control system
-Measuring instruments
-Backlight inverter
-Medical, precision equipment
Features:
-Small size, light weight
-Reliability, high quality
-Special materials and design for high working voltage requirements

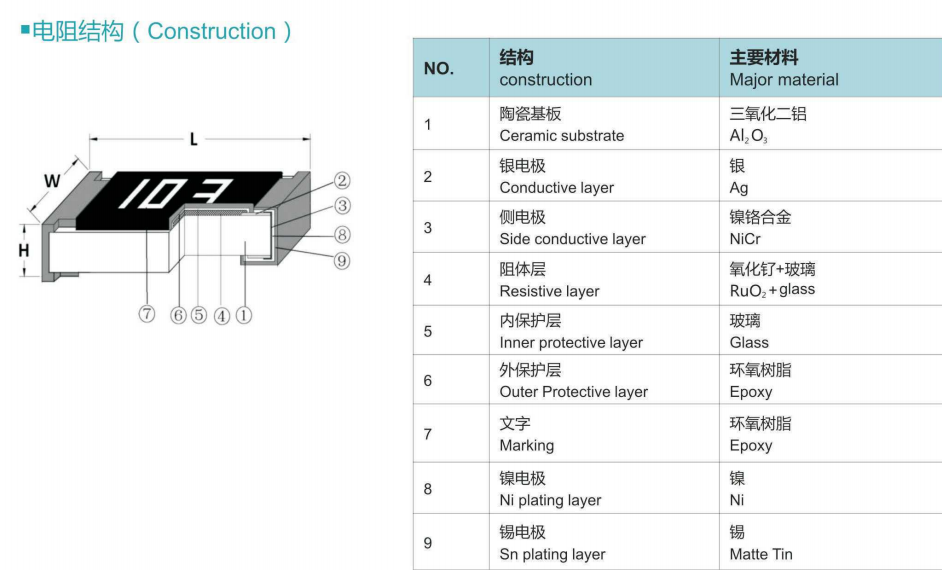

Structural materials:
Ceramic substrate: Aluminum trioxide
Silver electrode: Silver
Side electrode: Nickel-chromium alloy
Resistor layer: Ruthenium oxide + glass
Inner protective layer: Glass
Outer protective layer: Epoxy resin
Text: Epoxy resin
Nickel electrode: Nickel
Tin electrode: Tin
