Application Fields:
It is commonly used for automatic folding of aircraft boxes in various bathroom hardware, electronic products, hardware tools, toys, cosmetics, medical and pharmaceutical industries, etc.
Basic Functions:

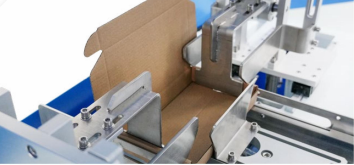

The machine is equipped with an automatic box adsorption feeding device, which can place a stack of boxes on the box rack;

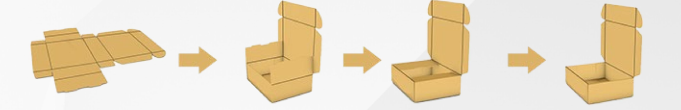

Synchronous box taking, downward pressing forming, and folding and buckling of both sides are completed synchronously at one time (three-side扣板 can also be made), and the finished product is output after folding;
It can be used as a single machine or connected to the subsequent box packing production line.

Standard Model - Technical Parameters:
Product Model: HL-Z15 Aircraft Box Folding Machine
Power Supply: 220V, 60Hz, 2kW
Box Folding Speed: 720-900 pcs/h
Air Source:
600NL/min
0.6-0.8Mpa
Applicable Box Size: Length 150-300, Width 100-200, Height 30-70mm, other sizes can be customized
Machine Weight: 580kg
Machine Size (LengthWidthHeight): 190013001800mm
Enlarged Model - Technical Parameters:
Product Model: HL-Z15B Aircraft Box Folding Machine
Power Supply: 220V, 60Hz, 2kW
Box Folding Speed: 600-720 pcs/h
Air Source:
600NL/min
0.6-0.8Mpa
Applicable Box Size: Length 550-700, Width 250-350, Height 50-90mm, other sizes can be customized
Machine Weight: 800kg
Machine Size (LengthWidthHeight): 2450*1660*2000mm
