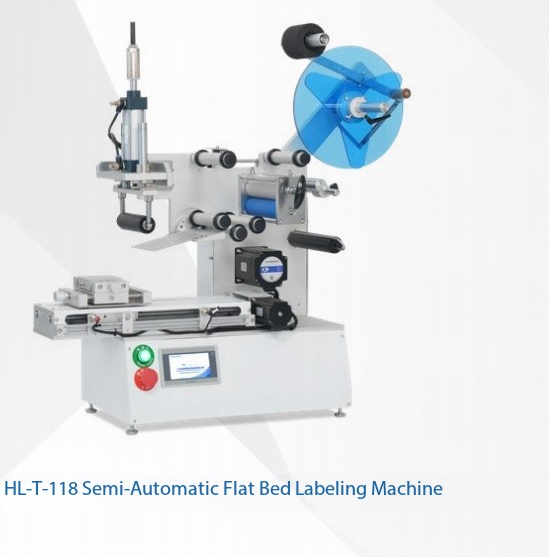

Basic Functions:

This machine adopts the working method of suction and sticking. During the downward movement of the suction head to adsorb the label, the label is pasted on the product;
High-precision label feeding structure (4 air cylinders), which absorbs the label and then peels it off. The label feeding is stable, especially suitable for labeling various small labels with labeling accuracy up to ±0.2mm;
The labeling position of some products is a concave surface. A suction head with the same shape as the concave surface can be designed as needed to extend into the concave surface for labeling;

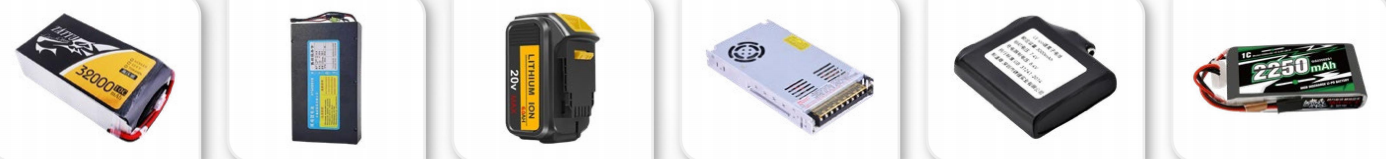

Applied to sticking self-adhesive labels on various flat and small curved surfaces. Such as battery end faces, lipstick bottoms, electronic chips, USB connectors, chargers, electronic products, etc., for sticking self-adhesive labels, barcodes, mobile phone case QR codes, double-sided adhesive labels, etc.; designed with a desktop structure, small floor space.

Technical Parameters:
Labeling Accuracy: ±0.5mm (excluding product and label errors)
Labeling Speed: 15~25 pcs/min (related to product size)
Applicable Product Size: Length (front-rear direction): 20mm~200mm; Width (left-right direction): 20mm~180mm; Height: 0.2mm~65mm
Applicable Label Size: Length: 10mm~40mm; Width: 5mm~50mm
Overall Machine Size: 500mm*400mm*900mm (LengthWidthHeight)
Applicable Power Supply: 220V/50Hz
Overall Machine Weight: 67kg
