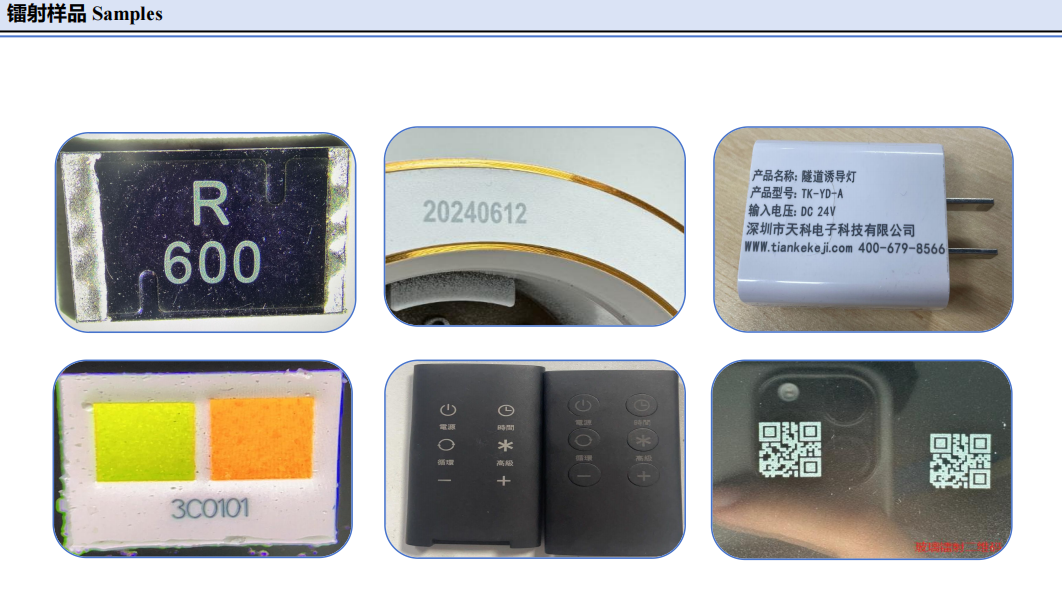

Application Scope:

Precision marking of 3C products
Number tube printing
Non-metallic surface marking
Glass device marking

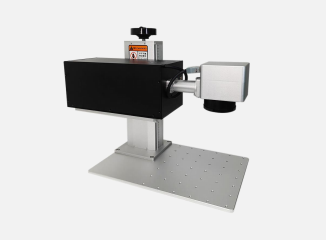

Product Overview:
The ultraviolet series laser machine, relying on the unique advantage of "cold processing" with a small heat-affected zone, realizes ultra-fine processing and microstructure fabrication in non-metallic brittle materials in the high-end manufacturing field, and is widely used in the 3C industry.
Main Features:
01.
Air-cooled structure, fast heat dissipation:
Adopting an air-cooled structure, no need for complicated configurations such as adding water pipes, installation and maintenance are relatively simple, and heat dissipation speed is fast.

Small size, light weight, easy to install:

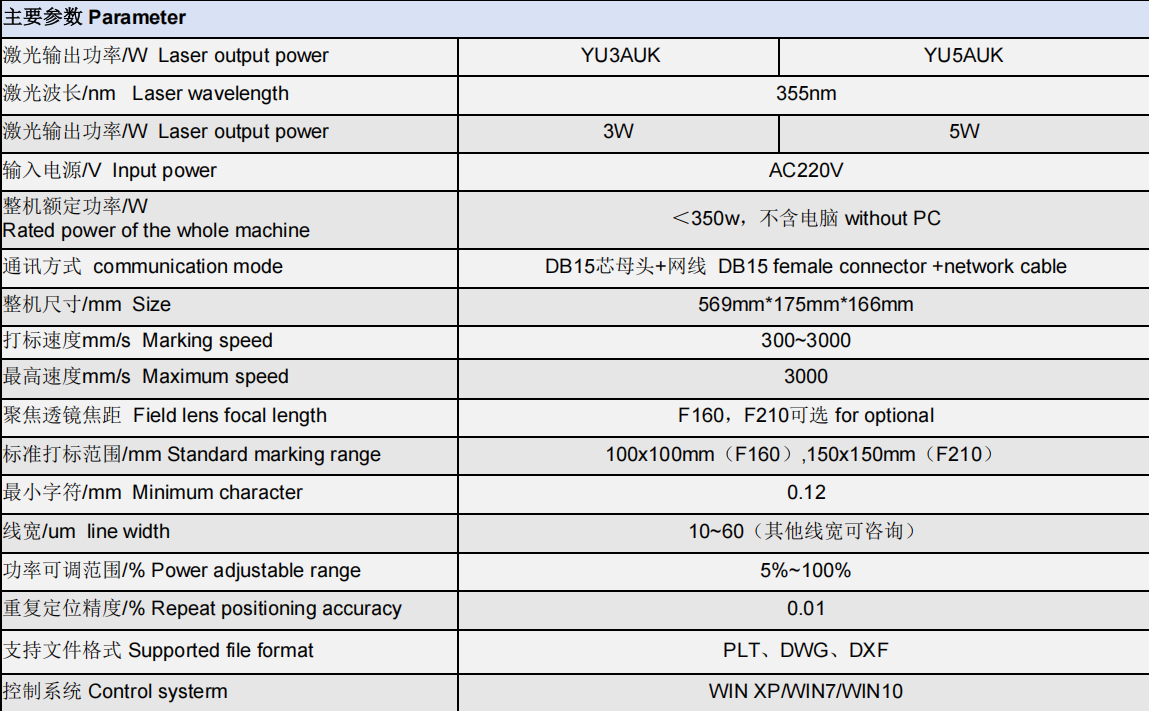

Machine dimensions are only 569mm175mm166mm, with small mass (13.0kg)

Excellent beam quality:
The focused spot is small, and the processing heat-affected zone is small, enabling ultra-fine marking.

With stamp adjustment foolproof function:
Use a barcode gun to scan the work order barcode, the laser software automatically calls the stamp document on the local computer or network server, automatically downloads the document and runs it.

Software can be customized and developed:
Can be connected to customer ERP/MES systems.
