Technical Specifications:
Machine Structure: Marble tabletop, stage size 500mm (width) x 400mm (depth).
Maximum Load Capacity: 100kg
Maximum Laser Processing Range: 150x150mmm
Colorful Angle: 0~360° arbitrary angle editable; software edits the angle once, and during processing, the software automatically calculates and completes the colorful angle engraving; that is: after editing the pattern, click once to engrave colorful production to complete all set angles of colorful lithography.
Applicable Materials: Some metal mirrors (stainless steel, some metal molds, nickel surfaces, etc.)
Processing Environment: Constant temperature 25℃+3℃
Input Power Requirements: 220V±10%, 20A/50HZ
Total Machine Power: Less than 2.5KW
Total Machine Weight: Approximately 1100kg

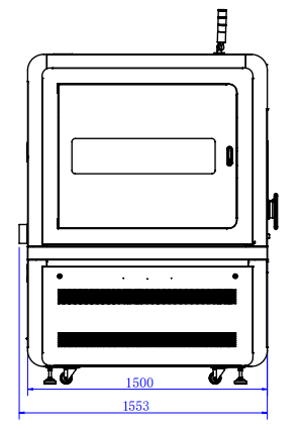

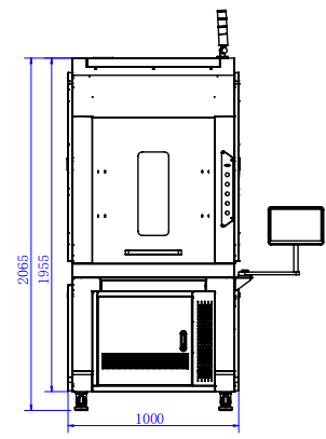

Overall Dimensions (mm) (Width X Depth X Height): 1200x1500x2000mm (standard model size, non-standard model size to be determined)
Cooling System: Water chiller
Pattern Editing: Colorful parameters are edited on the machine's computer; basic graphics are edited on other computers;
Colorful Lithography Technology:
Laser colorful lithography technology uses special laser optical design to enable the laser to produce interference effects on mirrored metals, causing dense physical stripes on the surface of the metal mirror. When these stripes reflect visible light, they produce light dispersion, presenting colorful and dazzling effects. The colors change with the viewing angle, as璀璨 as a rainbow, with a strong visual impact.
Special optical path design and developed laser have excellent beam quality;

Small focused spot, providing fine laser effect, and the laser effect is colorful and beautiful;
Colorful viewing angle follows the laser direction rotation function. ;
Powerful control hardware and software, the colorful angle can be edited and adjusted 360°, dynamically control the colorful effect, and the colorful effect is visible from multiple angles;
Can directly lithograph on mirrored stainless steel, mold steel, nickel sheets, metal PVD and other mirrored materials;

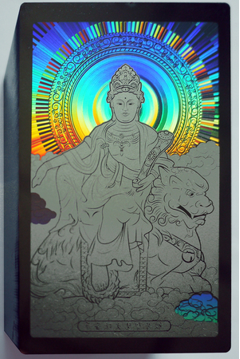

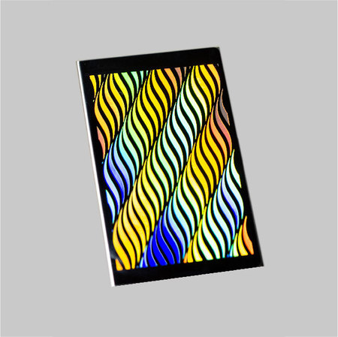

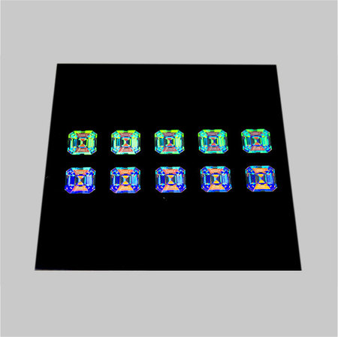

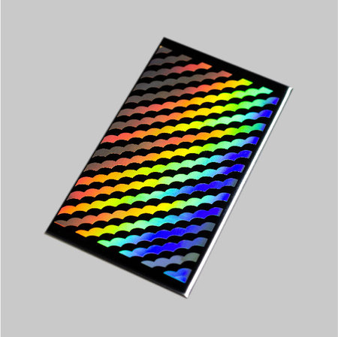

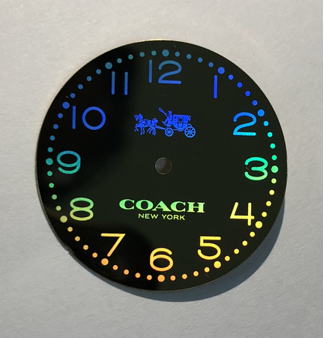

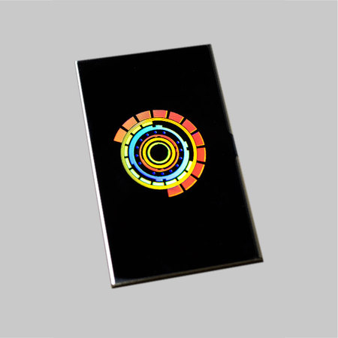

The colorful laser effect can be transferred from the mold to the product, suitable for industries such as jewelry, metal banknotes, commemorative coins, etc.;
