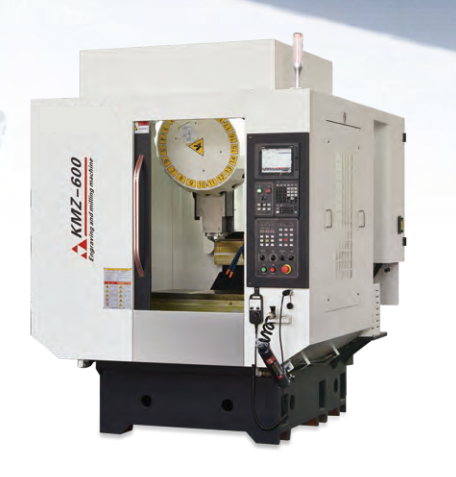

Machine Tool Features:

Unique long-span structural design for base and column
Direct-drive high-speed spindle with sensitive response, tapping above 5000 rpm
Three-axis rapid traverse of 48m/min, significantly reducing machining time
Flip-type servo tool magazine for tool change, fast and stable, reducing non-machining time
Machine chip removal adopts chip flushing type, with optimal chip removal angle and large-flow chip flushing system -- in addition to part machining, it is very suitable for drilling small-diameter holes
Shorten machining time, increase efficiency and profit

Standard Configuration:
· Mitsubishi CNC system (Japan)
· 15000rpm direct-drive spindle
· BT30-16T flip-type servo tool magazine
· Spindle oil temperature cooling machine
· Cutting cooling system
· Automatic lubrication system
· Electronic handwheel
· USB, CF card interface
· Work lighting
· Warning light
· Air gun
Optional Configuration:
· Fanuc system (Japan)
· Tool bodies, cutting tools, fixtures
· BT30-21T flip-type tool magazine
· 4th (5th) axis CNC turntable
· Z-axis column heightening
· Tool setter
· Voltage stabilizer
