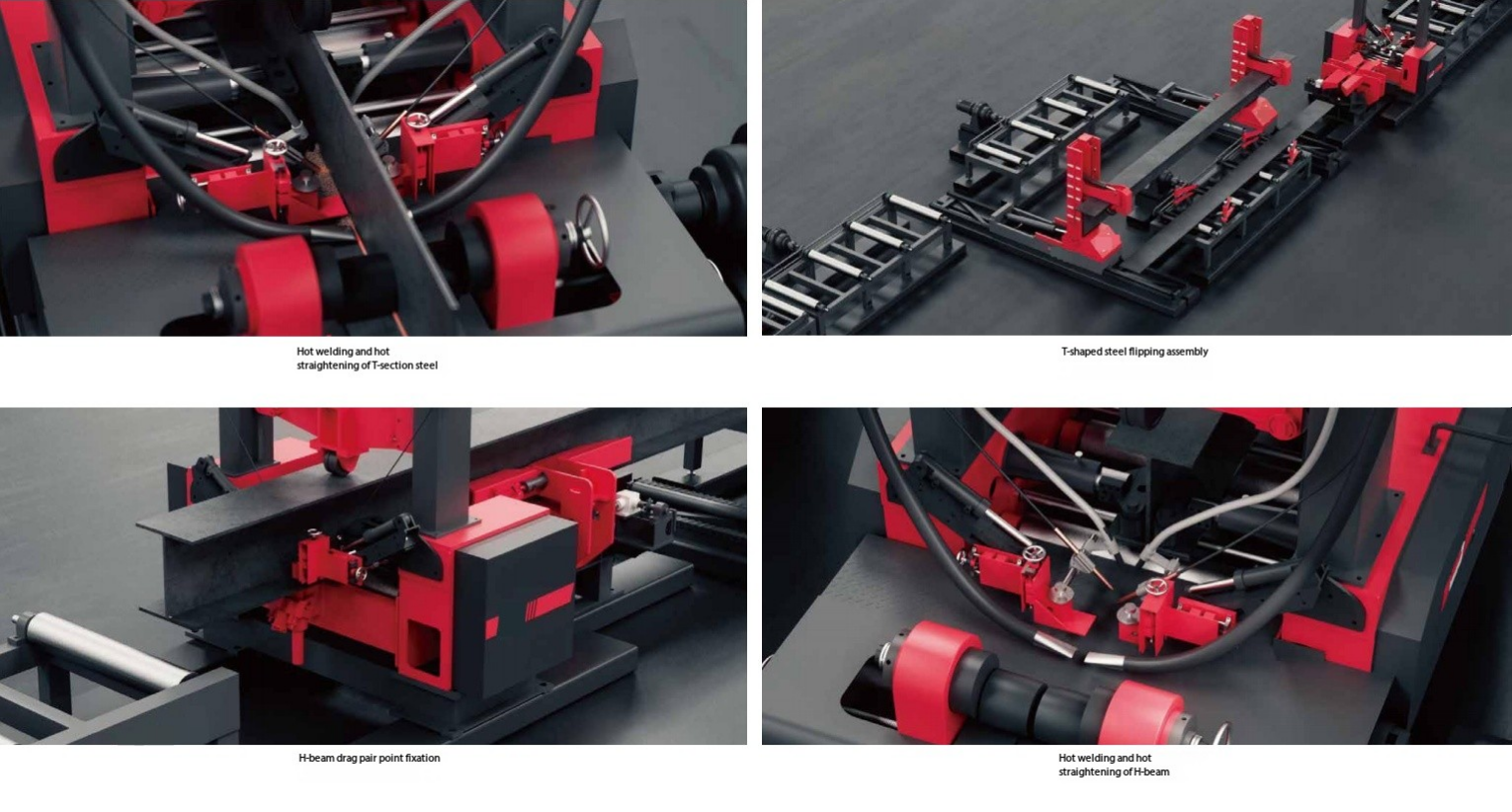

2 Integrated Welding and Straightening Machines + “Hanzhan” Turning Device + Automatic Drag-and-Align Spot Welding Machine

Core Parameters:
Web Height: 200mm–850mm
Workpiece Length: 6000mm–12000mm
Web Thickness: 6–30mm (No bevel required for welds under 18mm)

Primary Functions:
Semi-automated production for H/T-section steel assembly, tack welding, welding, straightening, and flipping

Flange Width: 200mm–600mm
Flange Thickness: 8mm–40mm
Welding Speed: 400–1000mm/min

Applicable Industries:
Steel structure industry, prefabricated construction, bridge engineering, shipyards, etc.

Precise Positioning, Intelligent Turning:
① Proprietary intelligent turning system with smart centering and precise positioning eliminates repeated adjustments, enabling effortless component rotation;
② Efficient structural design accelerates T-beam turning, eliminating the need for multiple overhead cranes;
③ Advanced intelligent control system enables one-button startup for safe, user-friendly operation;
④ Mobile and flexible design minimizes installation space requirements, saving factory floor area;
⑤ Built-in power-off self-locking function automatically secures components during power interruptions, pausing operations to prevent plate drops. System resets automatically upon restart, ensuring production safety.

Multi-system integration forms H-beam semi-automatic production line:
① The automatic flipping system integrates with automatic clamping, automatic tack welding, automatic welding, workpiece conveying, intelligent sensing, smart operation, and electrical control systems to form a semi-automated H-beam production line, enabling standardized operations with high workpiece yield rates;
② Compared to traditional equipment, fixed machinery and automated workpiece movement enable continuous, uninterrupted welding production, reducing labor and operational steps while significantly boosting efficiency;
③ Intelligently adjusts welding parameters like current and voltage based on plate thickness, accommodating diverse complex welding scenarios;
④ Achieves bevel-free welding for flanges under 18mm in T/H-shaped steel processing, featuring high welding speed and single-pass thermal straightening. Holds patented technologies for thermal welding/straightening processes and bevel-free submerged arc welding, with mature technology and broad market applicability;
⑤ The Hantian H-beam semi-automatic production line is a patented product by Zhimaide and Shandong Province's first-of-its-kind equipment. Expert appraisal confirms it fills a domestic technological gap, achieving internationally leading standards.

Exceptional Equipment Stability and Durability:
① Core components are precision-cast parts, ensuring extended equipment lifespan;
② Manufactured by a reputable producer with stable supply partners, utilizing renowned domestic and international brands for accessories;
③ Directly sourced from the original factory, backed by over 15 years of R&D experience. With over 10,000 units deployed across various equipment types, the technology is mature and boasts low failure rates.

Lifetime Service with Quality Assurance:
① Reserved system upgrade ports minimize future equipment renewal costs;
② Monthly purchase plan includes manufacturer-provided full lifecycle training to prevent production disruptions from personnel changes;
③ Nationwide maintenance team of over 100 technicians ensures rapid response and warranty support, safeguarding stable production.
