Reliable Quality:

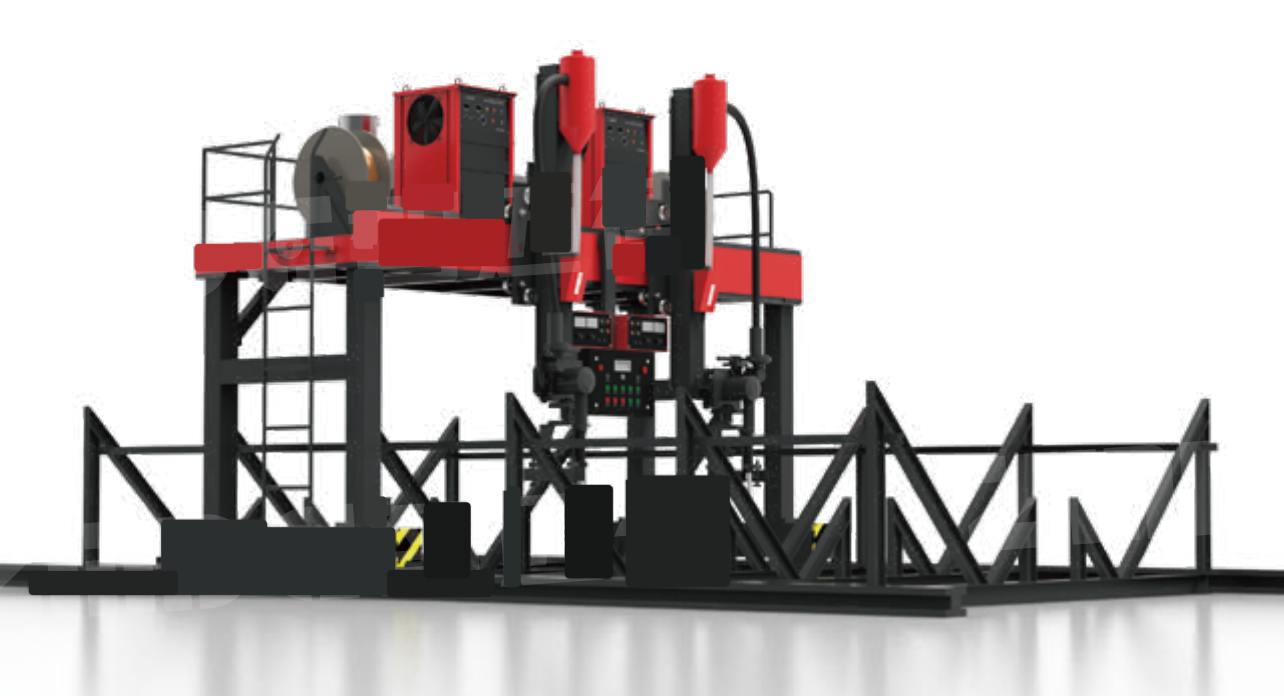

① The machine frame adopts a gantry structure with rigorously calculated rigidity and strength, featuring substantial material usage.
Key components undergo stress relief treatment for extended service life;
② The longitudinal variable-frequency drive system moves the entire gantry frame, ensuring stable operation;
③ Overload and short-circuit protection for welding arm movement motors and retraction motors is managed by circuit breakers, ensuring reliability.

User-Friendly Operation:
① The control panel is mounted on the gantry frame for convenient operation (achieving true centralized control and coordinated operation between the welding power source and main unit, making it simple and convenient);
② When adjusting the welding arm over a large range, the arm's vertical lifting mechanism and horizontal movement mechanism can be manipulated, offering flexible and convenient operation.

Cost Reduction & Efficiency Enhancement:
① Equipped with a welding gun fine-tuning device to ensure precise positioning, eliminating welding deviation common in conventional products and effectively improving product yield.
② Features a mechanical tracking mechanism with four-directional (up/down, left/right) floating tracking, significantly enhancing welding precision and stability. Produces aesthetically pleasing weld bead formation and increases finished product yield.
③ Maximum welding speed reaches 0.9m/min, enabling rapid and efficient production.
④ Automatic flux feeding and recovery system with 2×100KG capacity ensures repeated flux reuse. This reduces material waste, lessens operator fatigue, maintains output speed, and minimizes flux loss—truly achieving cost reduction and efficiency gains.
