Durable and Long-Lasting Service Life:
① Main chamber measures 8 meters in length with excellent sealing performance;
② High-manganese steel (M13) wear-resistant plates installed inside the main chamber protect wall panels from abrasion, extending chamber lifespan by over tenfold;
③ Internal lining plates secured with wear-resistant nuts and bolts, preventing damage to bolt heads.

Compliant with National Emission Standards, Reducing Equipment Costs:
① Optional foundation-free shot blasting saves approximately ¥100,000 in foundation costs;
Dust collection boxes at both entry and exit points, with a dust removal system airflow capacity of 25,000m³/h, minimizes environmental pollution and reduces investment in environmental protection equipment;
② The dust collector employs a downflow cartridge filter with high efficiency, meeting China's GBJ4 industrial “three wastes” emission standards. Dust emission concentration is below 120mg/m³, allowing dust-laden air to be directly discharged after filtration, eliminating purification equipment costs.

Balancing Quality and Efficiency with Superior Shot Blasting Performance:

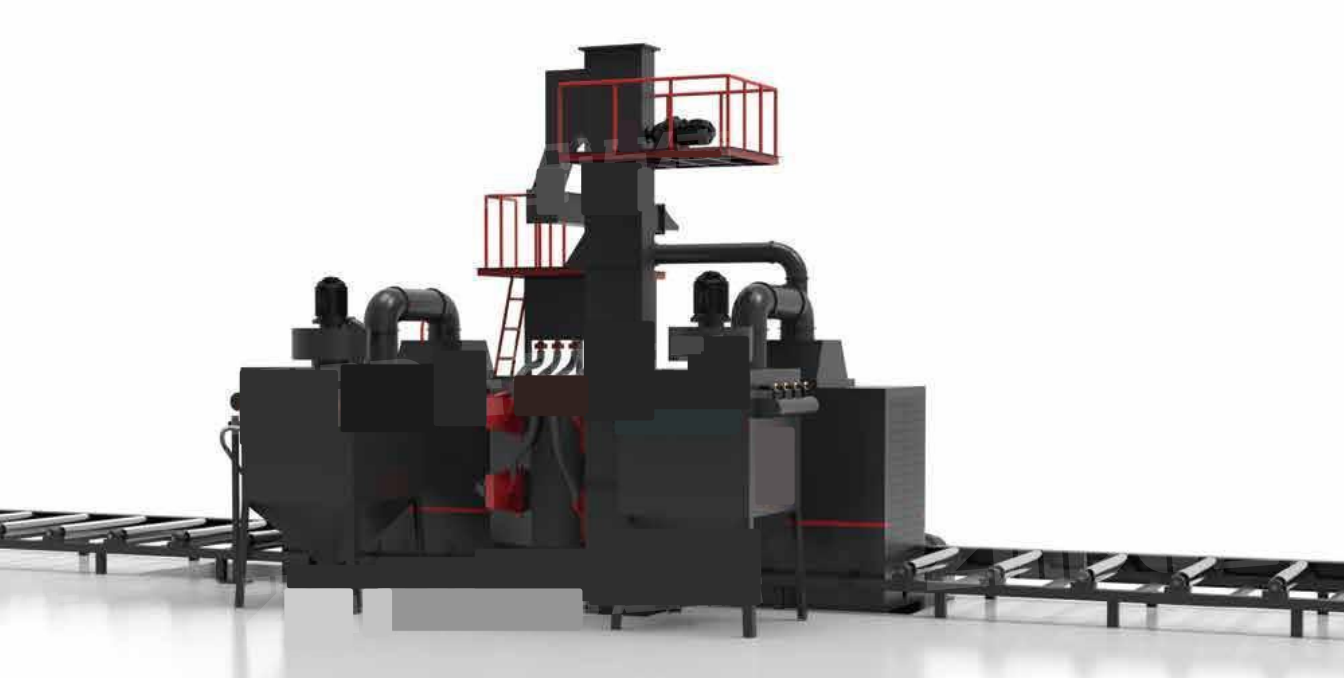

① Eight shot blasting wheels are installed on the upper, lower, front, and rear sections of the main chamber. The spatial configuration, tested and validated in practice, achieves optimal workpiece cleaning. It effectively removes scale, rust, and other contaminants from the workpiece surface, eliminates surface stress, enhances fatigue resistance, and improves paint adhesion.
② Three door curtains with blow-off mechanisms ensure stable shot flow and minimize deflection;
③ The machine utilizes shot reflection to effectively impact workpiece surfaces, enhancing cleaning quality and efficiency. Rust removal grade meets GB8923-88A-B Sa2.5 (localized Sa2.0). Maximum conveyor speed reaches 4 meters per minute.
