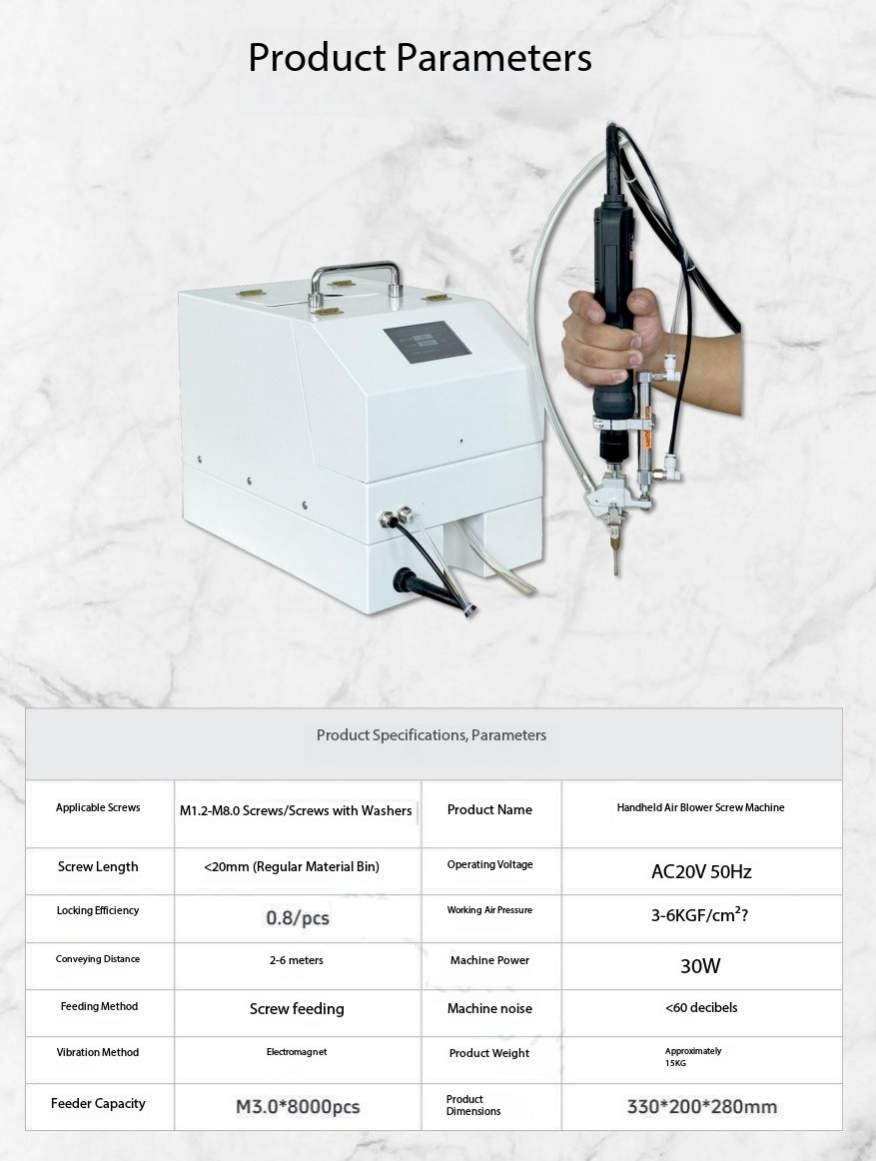

Product Specifications and Parameters:
Applicable Screws: M1.2-M8.0 screws / screws with washers
Screw Length: <20mm (regular magazine)
Locking Efficiency: 0.8/pcs
Conveying Distance: 2-6 meters
Feeding Method: Screw feeding
Vibration Method: Electromagnet
Feeder Capacity: M3.08000pcs
Product Name: Handheld Pneumatic Screwdriver
Working Voltage: AC20v 50Hz
Working Air Pressure: 3-6KGF/C?
Machine Power: 30w
Machine Noise: <60 decibels
Product Weight: Approximately 15KG
Product Dimensions: 330200*280mm
Product Features:

High Efficiency: 1 person is equivalent to 3 people in efficiency, and the speed of screwing between new and old employees is almost the same.
Fast and More Stable Locking: Small size, light weight, feeding speed 80PCS~120PCS/minute, locking speed 0.5 seconds - 1 second/PCS.
Stable Performance: The failure rate is lower than 1 in 20,000. The troubleshooting time only takes a few seconds to 1 minute, which will not hinder the smoothness of production. Wearing parts are standard parts that can be purchased online, without being limited by non-standard parts.

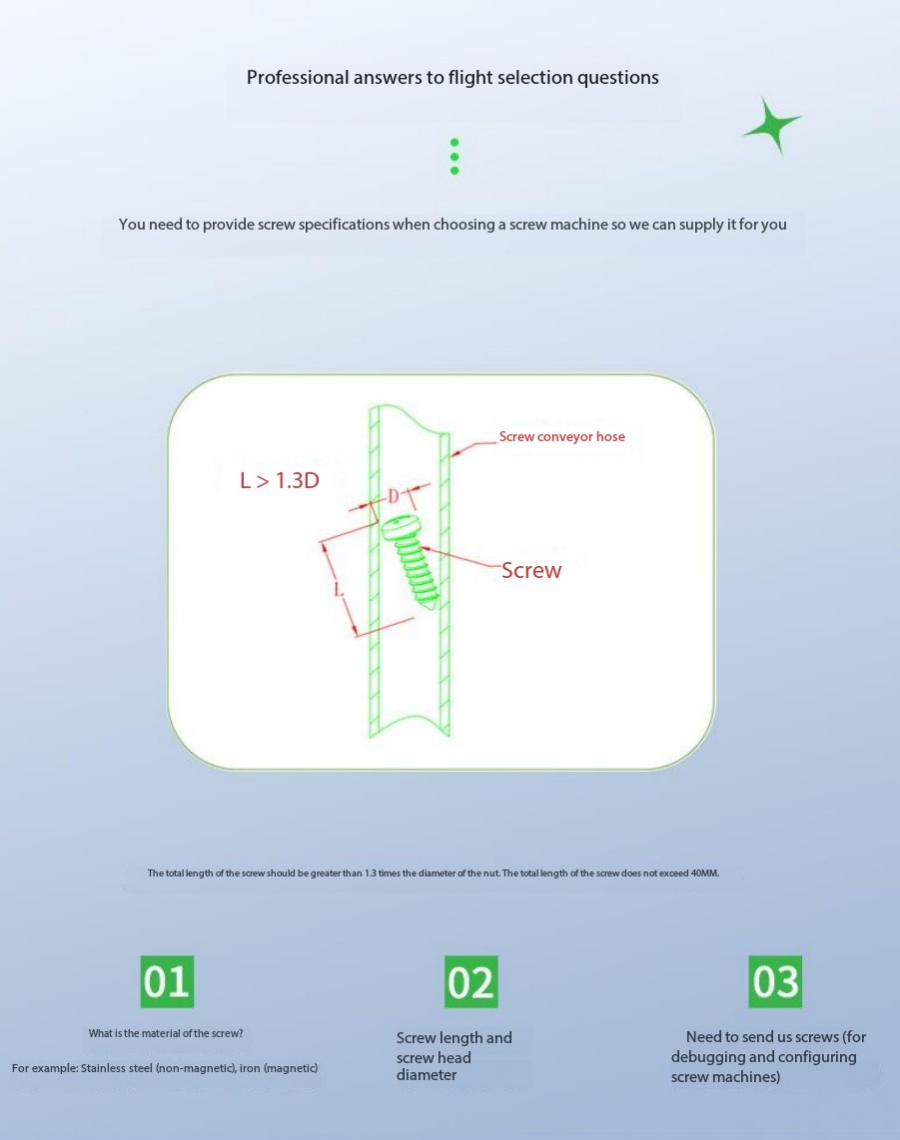

Wide Application Range: No limitation on screw material, no limitation on screw thread. The total length of the screw is 4MM-30MM, and the diameter of the screw cap is 2.3-8.0MM. Both flat workpieces and deep-hole workpieces can be locked.

Widely Used in: Electronic products, plastic products, wooden crafts, instruments, mobile phones, car audio, floor sweepers, small household appliances, lighting products, hair straighteners, projectors, headphones, security alarms, toys and various semi-finished products during assembly for screw locking.

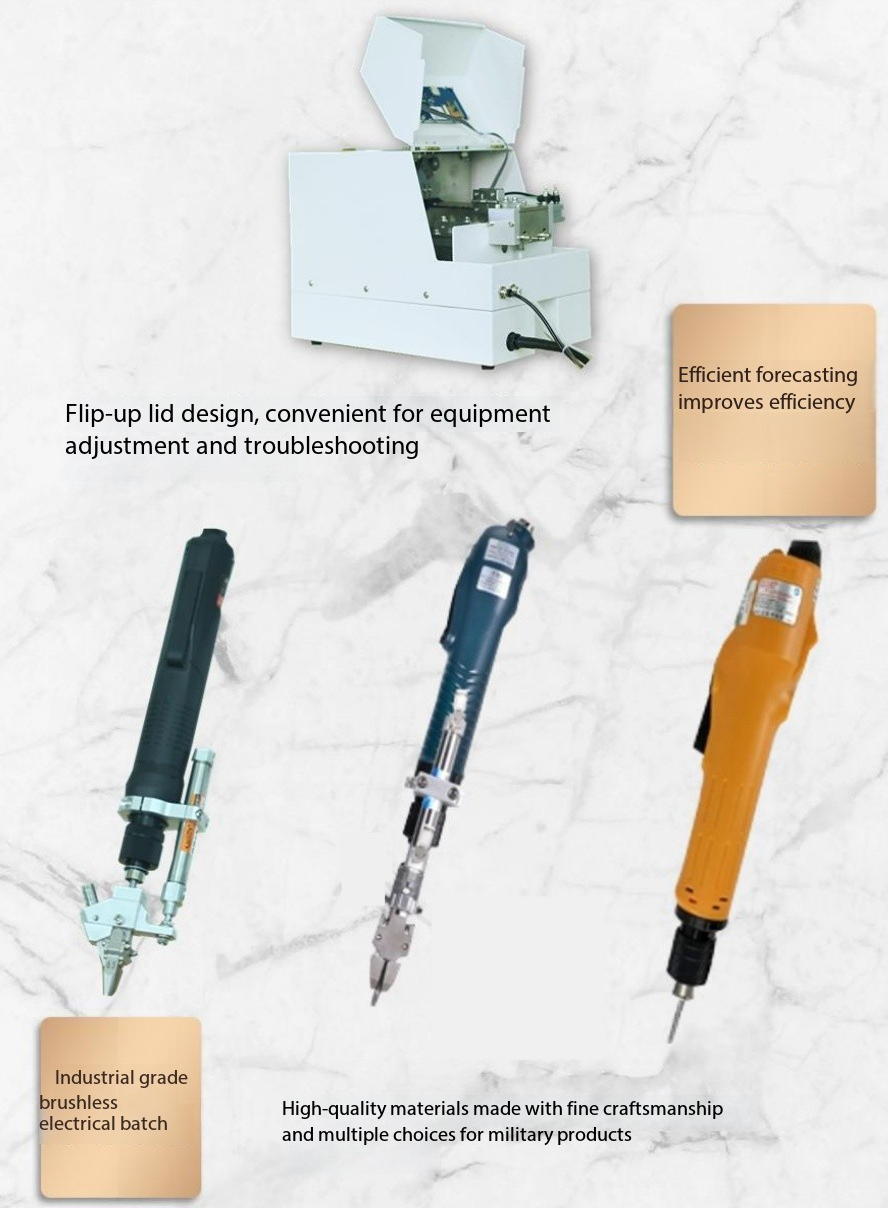

Precise Structure, Efficient and Stable, Durable
Six Upgrades, Constantly Surpassing Ourselves:
We attach great importance to the problems feedback by customers and constantly improve to surpass ourselves.

Enlarged Magazine:
Large magazine makes large screws more efficient.
Special Feeding Head:
Smooth feeding, precise design.
Independent Mold Design:
Easy to use, workers can get started easily.
Easy to maintain, faults can be solved in seconds.
Customized for Special Purposes:
Customized for products to ensure stable and efficient equipment.
Special Chuck:
Two steps, no screw jamming.
Considerate After-sales Service:
Nationwide warranty, 1-year quality guarantee.

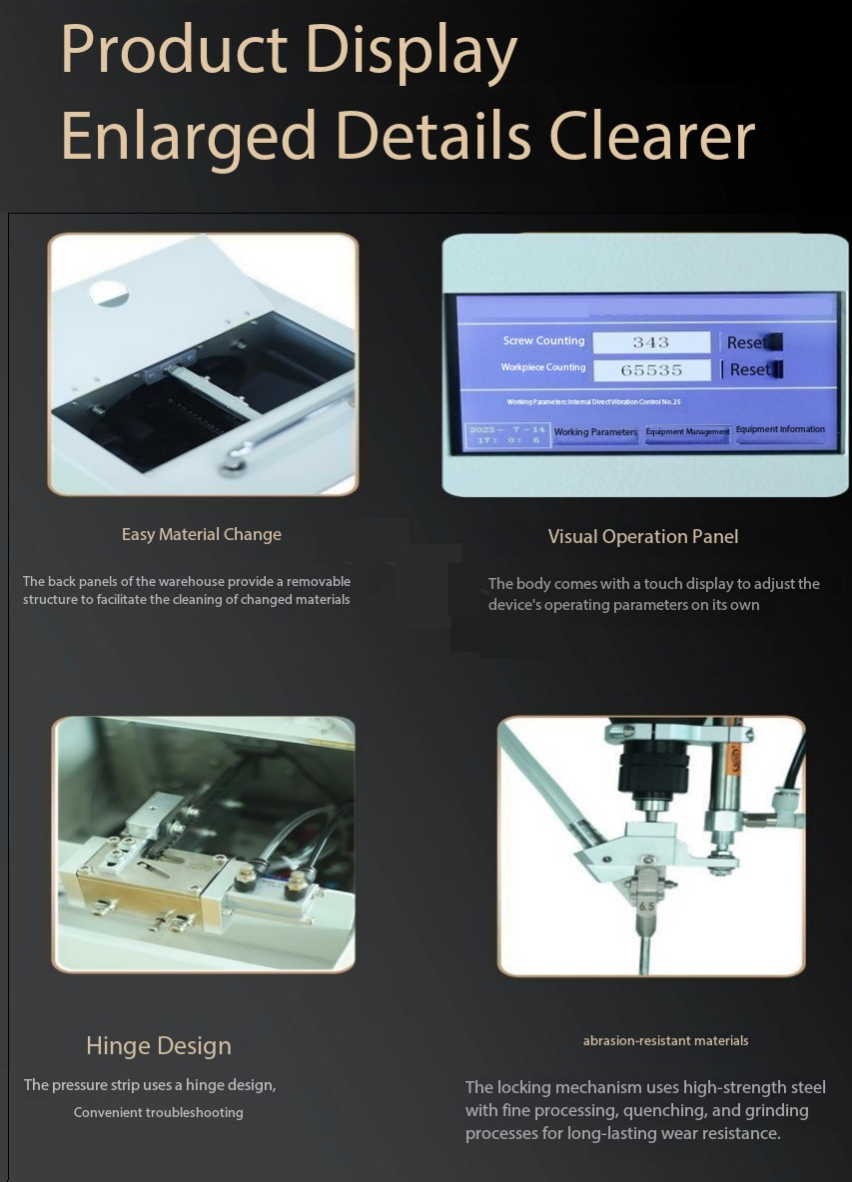

Easy Material Change: The rear plate of the magazine is a detachable structure for easy cleaning and material replacement.
Visual Operation Panel: The machine is equipped with a touch display, which can adjust the equipment operating parameters by itself.
Hinge Design:
The pressing bar adopts a hinge design for easy troubleshooting.
Wear-Resistant Material:
The locking mechanism is made of high-strength steel through precision processing, quenching, grinding and other processes, which is durable and wear-resistant.

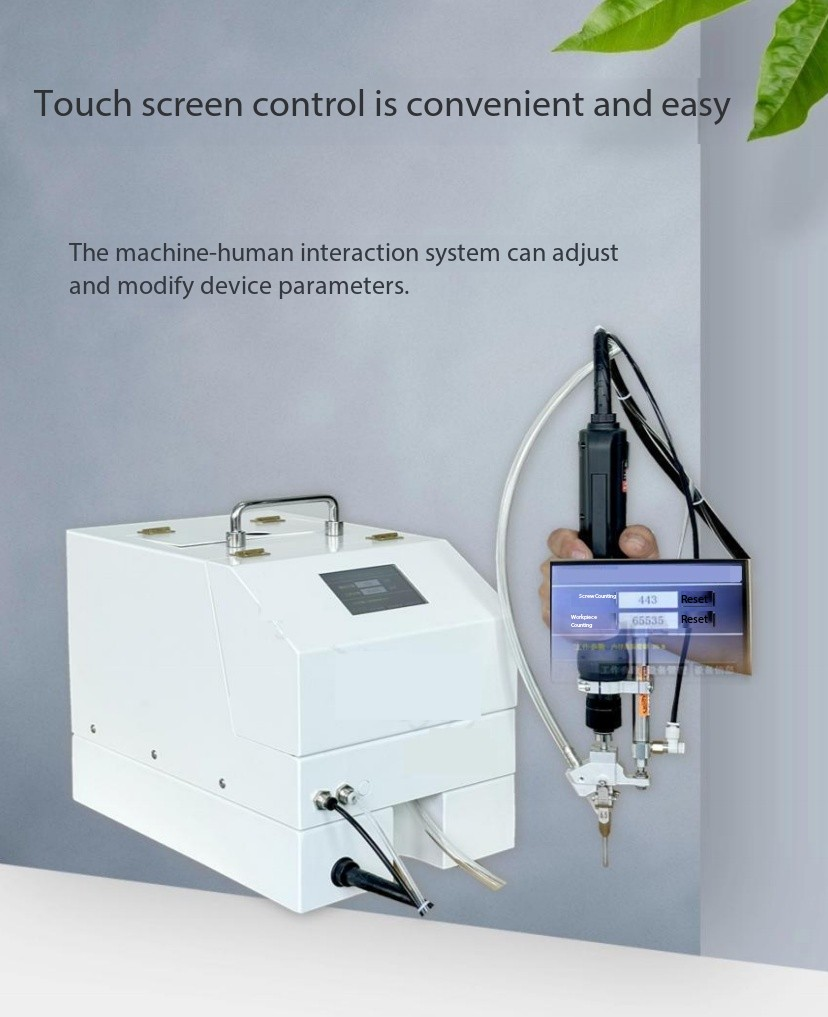

Touch Screen Control, Convenient and Easier:
The human-machine exchange system on the machine can adjust and modify the equipment parameters.
