Introduction to Screw Valve

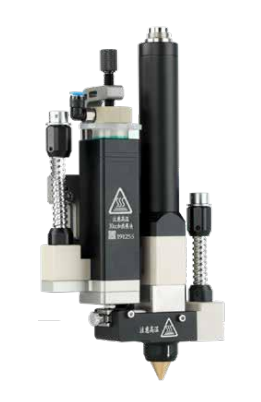

5800 Hot Melt Adhesive Precision Screw Valve is driven by a customized brushless servo motor, which can provide a large torque and efficient transmission ratio. This product adopts precision-grade tungsten steel spiral components, which can effectively ensure the dispensing accuracy, and at the same time, the maintenance is very simple, and the screw components can be quickly disassembled and assembled.
The product is widely used in: STM industry, optoelectronics industry, 3C digital product industry, connector industry, optoelectronics industry, etc. The applicable fluids include: PUR hot melt adhesive, PUH hot melt adhesive, and other high-temperature melting fluids.
Product Features:
● Drive: Driven by precision brushless servo motor
● Quick Debugging: Adopt the latest module design to simplify the tungsten steel screw assembly.
● High Efficiency: Adopt efficient screw conveying mode to effectively improve production efficiency
● Long Service Life: Replaceable super hard alloy screw assembly with longer service life.
● Large Flow: Adopt large pitch feeding, multiple pitch options, efficient fluid delivery.
● Easy Maintenance: Modular tungsten steel screw assembly for quick disassembly and assembly.
● Low Cost: Patented design structure requires only a small amount of consumables for maintenance, saving maintenance costs during production.
● Stability: Adopt spiral fluid conveying method for long-term stable dispensing.
Large Flow Screw Valve Specifications:
● Dispensing Method: Contact dispensing mode
● Applicable Liquid Types: PUR, PUH, hot melt adhesive, high-temperature melting fluid, etc.
● Applicable Liquid Viscosity: 10000 - 2000000 cps
● Operating Frequency: Max: 400 rpm
● Applicable Needle Types: Steel needles, custom needles
● Glue Supply Air Pressure: Glue pressure: 0.01-1Mpa
● Heating Temperature: Valve body Max: 200℃, Glue barrel Max: 150℃
● Valve Body Mass: 1000g
● Overall Dimensions: L160mm*W75mm*H335mm
