Model:

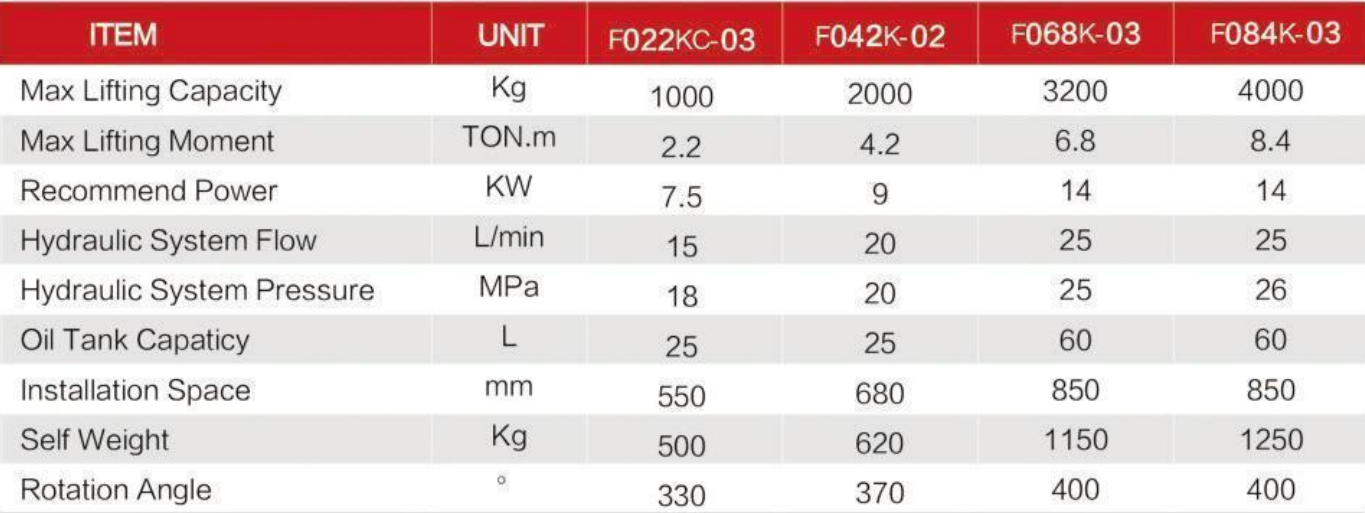

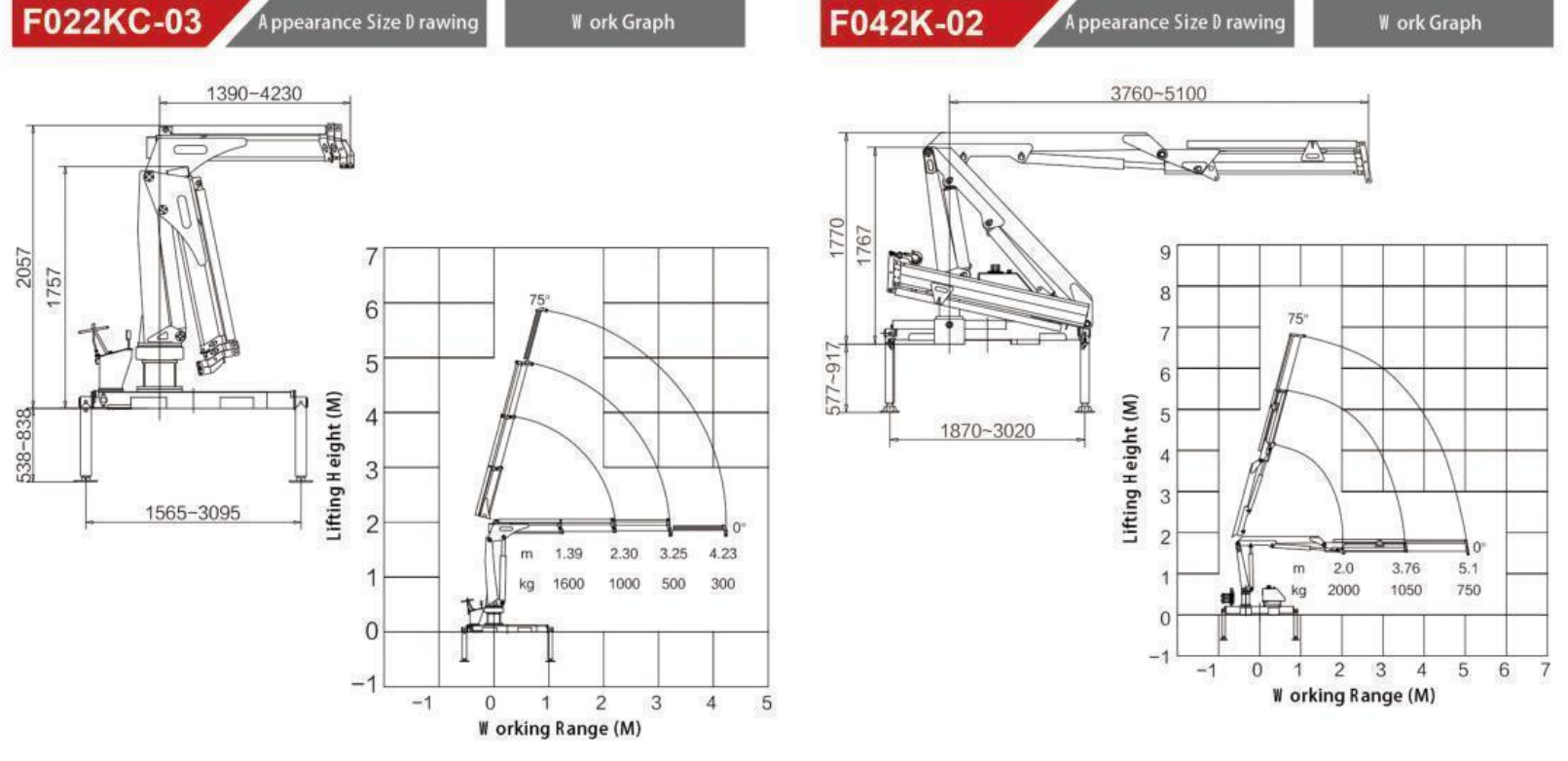

F022KC-03
F042K-02

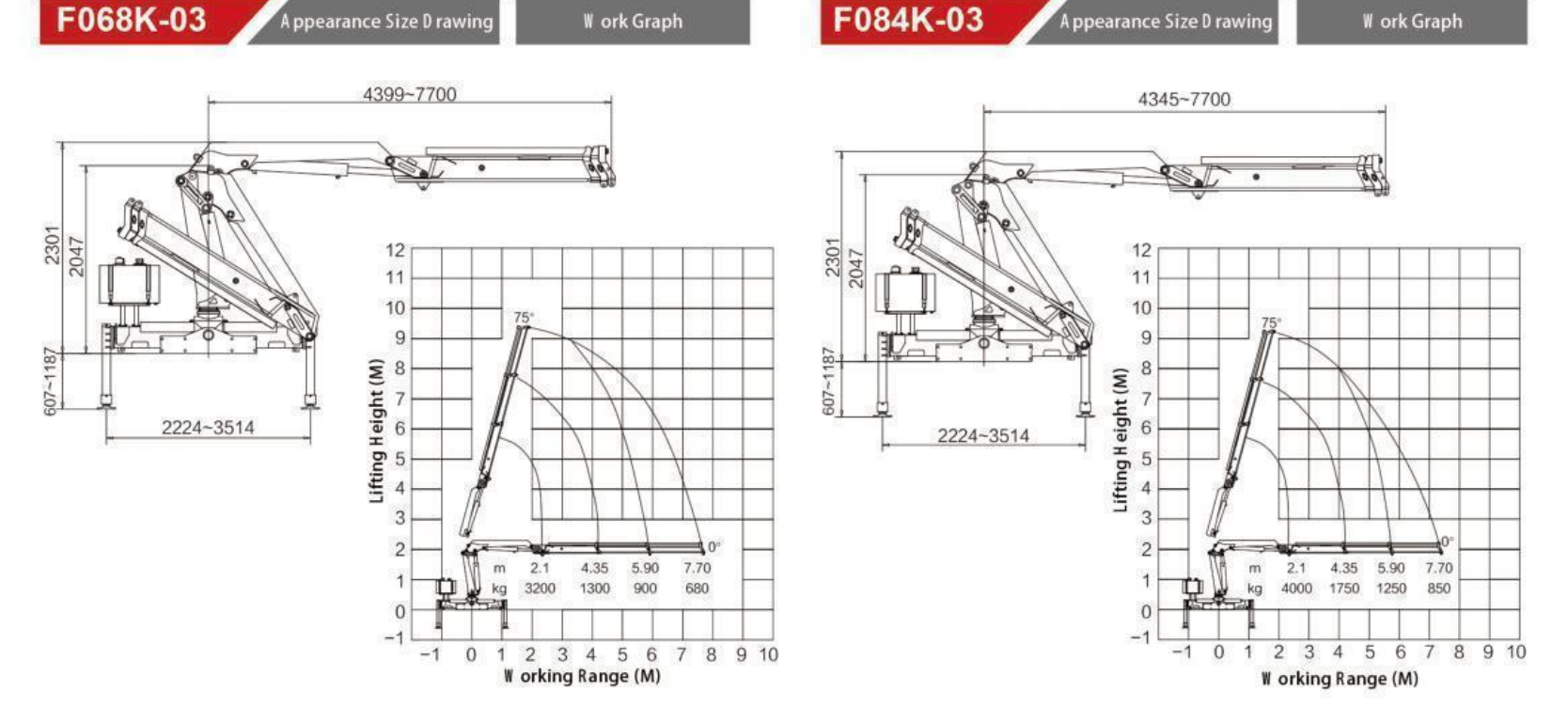

F068K-03
F084K-03

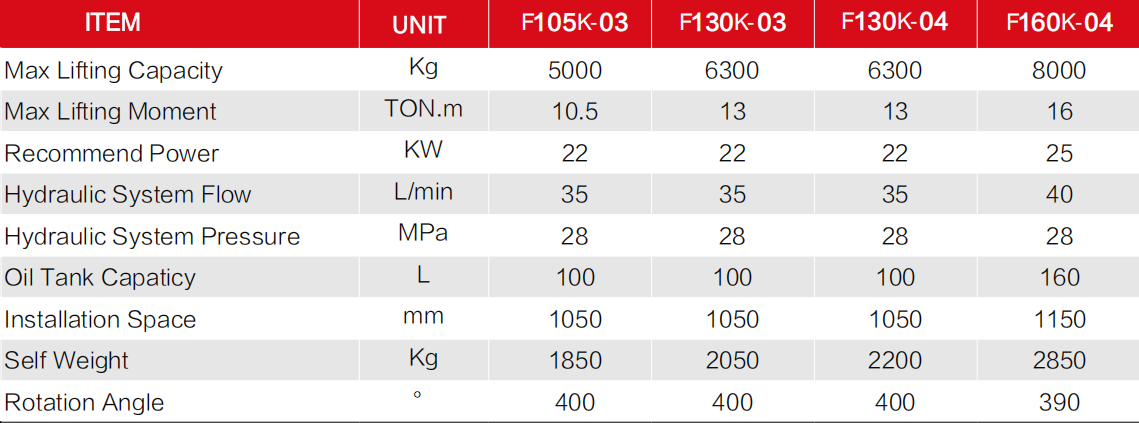

F105K-03
F130K-03
F130K-04
F160K-04

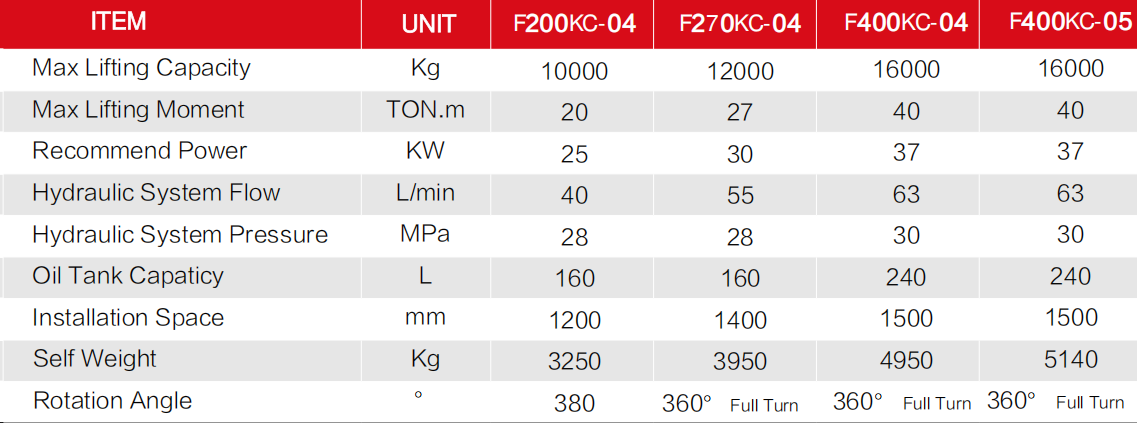

F200KC-04
F270KC-04
F400KC-04
F400KC-05

Advanced development analysis means ensuring the design is very reliable
The structural design is more compact, with lighter self-weight, larger load ratio, and reasonable and beautiful overall lines
Adopting a four-link mechanism, the lifting capacity is stronger
The two-section folding arm can tilt upward (negative elevation angle), allowing the crane to enter lower working spaces for lifting
The second-section folding arm cylinder adopts a reverse arrangement and a flange-connected balance valve, resulting in higher reliability.
Reduce leakage points. There are no oil pipes on the cylinder barrel, reducing the possibility of damage.
The rack cylinder is arranged at an incline, allowing the boom to make full use of space in the folded state, resulting in a compact overall structure. The center of gravity is lowered, improving vehicle driving stability.
The more symmetrical center design of the hexagonal boom gives it greater bending resistance.
The floating three-point bridge structure design can reduce additional stress on the chassis frame during driving.
